IRFB/IRFIB/IRFS/IRFSL41N15D
www.irf.com
9
TO-220 Full-Pak Part Marking Information
Notes: This part marking information applies to al devices produced before 02/26/2001
and currently for parts manufactured in GB.

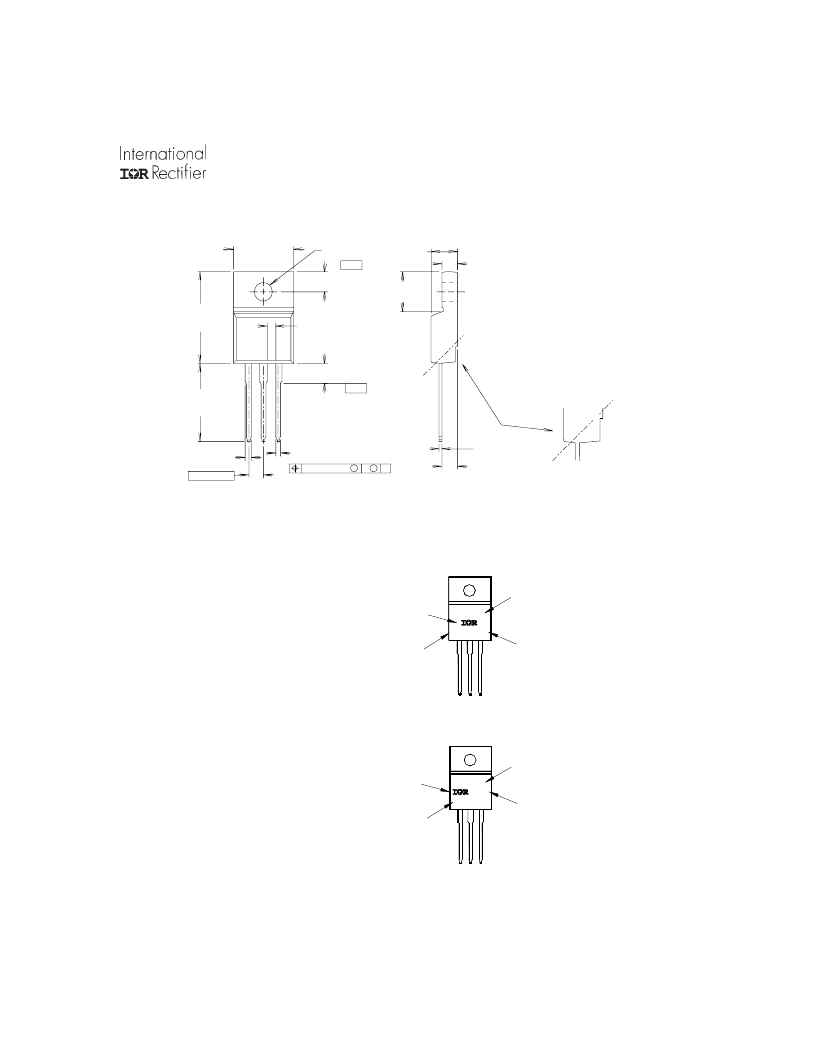

TO-220 Full-Pak Package Outline
Dimensions are shown in millimeters (inches)
LEAD ASSIGNMENTS
1 - GATE
2 - DRAIN
3 - SOURCE
NOTES:
1 DIMENSIONING & TOLERANCING
2 CONTROLLING DIMENSION: INCH.
D
C
A
B
MINIMUM CREEPAGE
DISTANCE BETWEEN
A-B-C-D = 4.80 (.189)
3X
2.85 (.112)
2.65 (.104)
2.80 (.110)
2.60 (.102)
4.80 (.189)
4.60 (.181)
7.10 (.280)
6.70 (.263)
3.40 (.133)
3.10 (.123)
- A -
3.70 (.145)
3.20 (.126)
1.15 (.045)
MIN.
3.30 (.130)
3.10 (.122)
- B -
0.90 (.035)
0.70 (.028)
3X
0.25 (.010)
M
A M B
2.54 (.100)
2X
3X
13.70 (.540)
13.50 (.530)
16.00 (.630)
15.80 (.622)
1 2 3
10.60 (.417)
10.40 (.409)
1.40 (.055)
1.05 (.042)
0.48 (.019)
0.44 (.017)
ASSEMBLY
LOT CODE
(YYWW)
YY = YEAR
WW = WEEK
EXAMPLE:
LOT CODE E401
THIS IS AN IRFI840G
WITH ASSEMBLY
E401
RECTIFIER
LOGO
INTERNATIONAL
PART NUMBER
IRFI840G
DATE CODE
9245
Notes: This part marking information applies to devices produced after 02/26/2001 in
location other than GB.
WITH ASSEMBLY
LOT CODE 3432
ASSEMBLED ON WW 24 1999
IN THE ASSEMBLY LINE "K"
EXAMPLE: THIS IS AN IRFI840G
PART NUMBER
LOT CODE
ASSEMBLY
INTERNATIONAL
RECTIFIER
LOGO
34 32
924K
IRFI840G
DATE CODE
YEAR 9 = 1999
WEEK 24
LINE K
