K4S160822D
CMOS SDRAM
- 3 -
Rev. 1.0 (Oct. 1999)
The K4S160822D is 16,777,216 bits synchronous high data
rate Dynamic RAM organized as 2 x 1,048,576 words by 8 bits,
fabricated with SAMSUNG
′
s high performance CMOS technol-
ogy. Synchronous design allows precise cycle control with the
use of system clock I/O transactions are possible on every clock
cycle. Range of operating frequencies, programmable burst
length and programmable latencies allow the same device to be
useful for a variety of high bandwidth, high performance mem-
ory system applications.
ORDERING INFORMATION
JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address
Dual banks operation
MRS cycle with address key programs
-. CAS latency ( 2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system
clock
Burst read single-bit write operation
DQM for masking
Auto & self refresh
15.6us refresh duty cycle(2K/32ms)
GENERAL DESCRIPTION
FEATURES

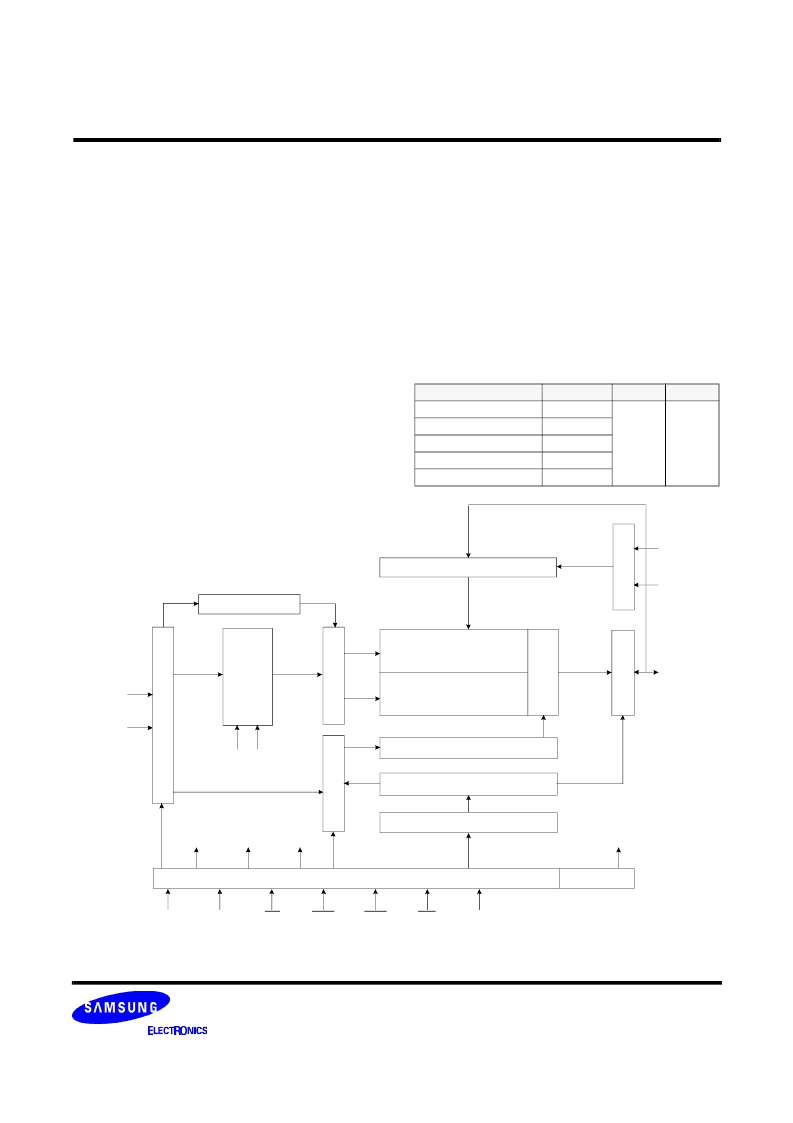

FUNCTIONAL BLOCK DIAGRAM
1M x 8Bit x 2 Banks Synchronous DRAM
Samsung Electronics reserves the right to
change products or specification without
notice.
*
Bank Select
Data Input Register
1M x 8
1M x 8
S
O
I
Column Decoder
Latency & Burst Length
Programming Register
A
R
R
R
C
L
L
LCKE
LRAS
LCBR
LWE
LDQM
CLK
CKE
CS
RAS
CAS
WE
DQM
LWE
LDQM
DQi
CLK
ADD
LCAS
LWCBR
Timing Register
Part No.
Max Freq.
143MHz
125MHz
100MHz
100MHz
100MHz
Interface Package
K4S160822DT-G/F7
K4S160822DT-G/F8
K4S160822DT-G/FH
K4S160822DT-G/FL
K4S160822DT-G/F10
LVTTL
44
TSOP(II)
