Semiconductor
MSM6786
12/16

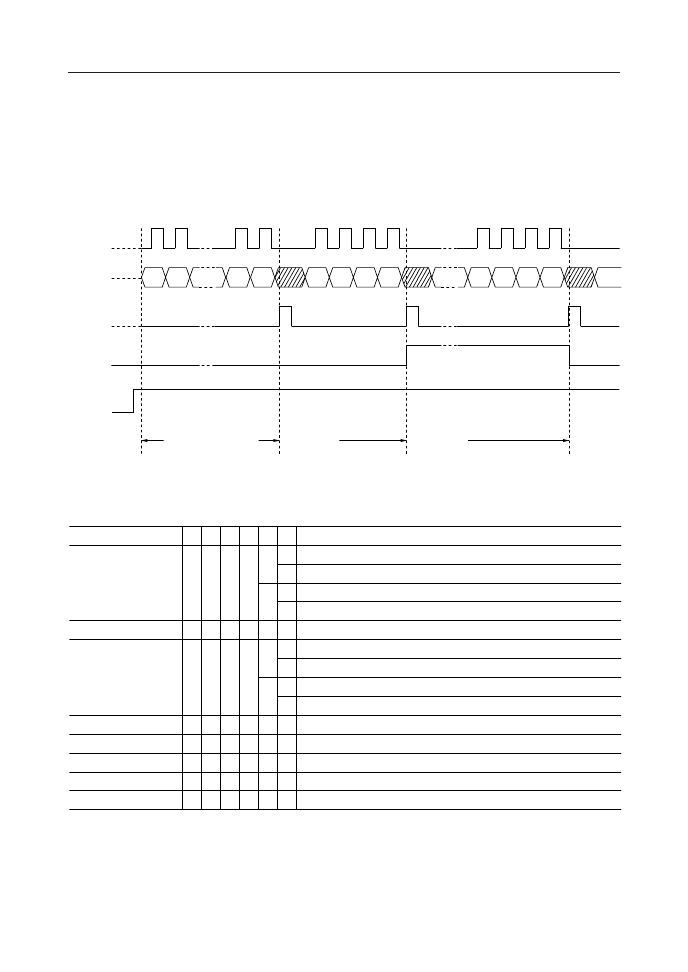

Display on, Display off
In power ON reset state, display will go out. To turn the display on, write the display ON
command. The display and LED can go out by writing the display OFF command, irrespective
of display data.
Display ON command releases the display OFF state. By writing this command, display will
return to original state.
D1
D2
C4
C2
C3
C4
C5
C2
C3
C4
C5
CLOCK
DATAI/O
LOAD
Display On/Off
C5
Display On
Command Write
Display Off
Command Write
RESET
Display Data Input
Command List
Command Name C5 C4 C3 C2 C1 C0
F1
Operation
F2
F3
F4
F5
F6
F7
F8
0
0
1
0
0
0
1
0
1
￥
0
1
0
1
￥
￥
￥
￥
￥
1
0
0
1
1
0
1
￥
0
￥
0
1
1
1
1
1
1
0
0
1
0
1
1
1
0
0
1
0
1
￥
￥
￥
￥
￥
￥
￥
￥
Display Data Input (Corresponding to Common 1)
Display Data Input (Corresponding to Common 2)
Display Data Input (Corresponding to Common 3)
Display Data Input (Corresponding to Common 4)
Key Data Output
Display Data Input (1) + Key Data Output
Display Data Input (2) + Key Data Output
Display Data Input (3) + Key Data Output
Display Data Input (4) + Key Data Output
Display Off
Display On
Key Scan Stop + Key Data Output
Key Scan Stop
Key Scan Start + Key Data Output
￥
: Don't care
