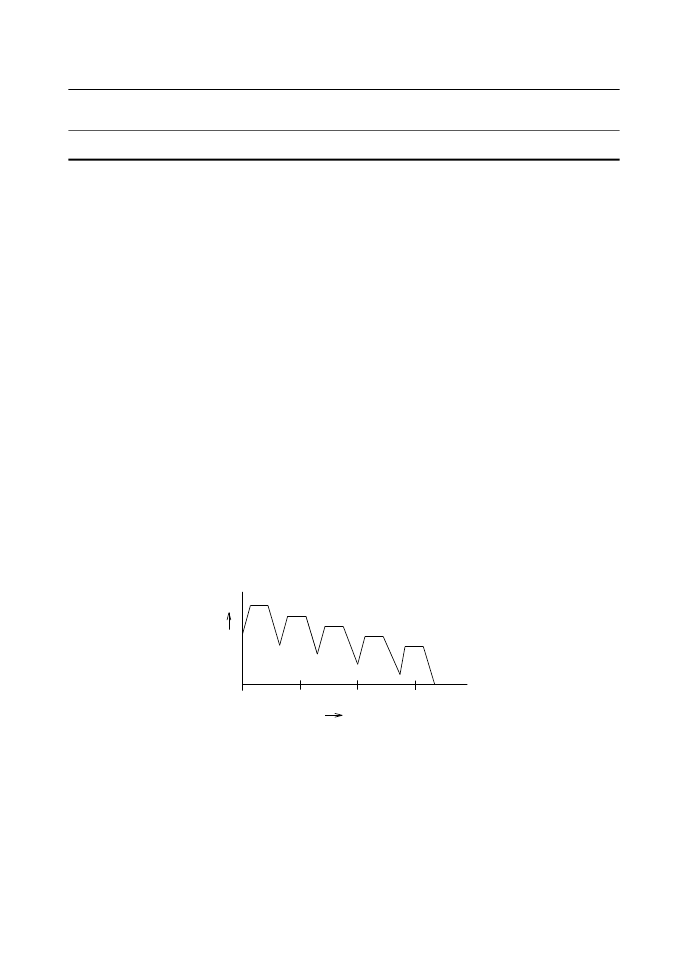

Semiconductor
MSM6789A/6789L
MSM6789A/6789L
GENERAL DESCRIPTION
The MSM6789A/6789L, an improved version of MSM6788, is a solid-state recorder developed using
the Sub Band Coding (SBC) method.
Just like MSM6788, the MSM6789A/6789L has a stand-alone mode and a microcontroller interface
mode. In the stand-alone mode, record/playback conditions can be selected from pins and the
MSM6789A/6789L can be controlled by a simple drive timing. In the microcontroller interface mode,
record/playback can be controlled by commands from the microcontroller, and more functions are
available than in the stand-alone mode.
The MSM6789A/6789L can directly drive serial voice ROM as external memory as well as serial
register or general-purpose DRAM* (1-bit
￥
or 4-bit
￥
type selectable) as external memories, which
allows a recording and playback circuit with fixed messages to be built easily. The method from
microcontroller is the same as the MSM6788.
* Only for MSM6789A
Difference between MSM6788 and MSM6789A
MSM6788
Unavailable
No
No
MSM6789A
Available
Yes
Yes
General DRAM
Unvoiced-part elimination function
PCM playback
SBC method:
The SBC method divides voice frequencies into five bands and codes the component for each of
the bands separately, as shown below.
SBC Solid-State Recorder IC
Note:
This data sheet explains a stand-alone mode and a microcontroller interface mode, separately.
ch 1
ch 2
ch 3
ch 4
ch 5
1
2
f (Hz)
3
0
kHz
Gain
@f
s
=8.0 Hz
