Semiconductor
MSM6786
8/16
R0
–
R4
(Pin 37-Pin 41)
These are key switch scan pulse output pins. During the scan operating, "L" level is output in
sequence. All pluses go to "L" level when scanning stops.
C0
–
C5
(Pin 31-Pin 36)

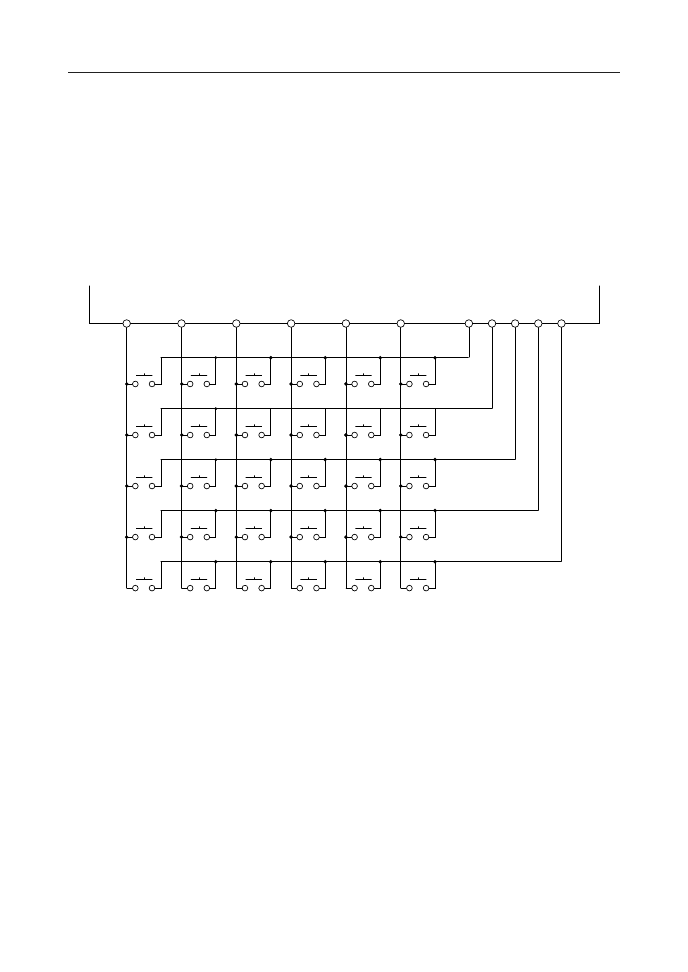

These are input pins that detect the key status. These pins have pull-up resistors. Key matrices
are formed with pins
R0
–
R4
.
C0
C1
C2
C3
C4
C5
R0 R1 R2 R3 R4
INT (Pin 45)
This is the keyscan end signal output pin. This pin becomes "H" when one scan cycle is
completed, and returns to "L" by a load pulse after data output or when the "Scan Stop"
command is written. (The pin is in "L" status during reset.)
If this pin is not used, leave it unconnected.
