Data Sheet
7
2004-01-16
PTF210901

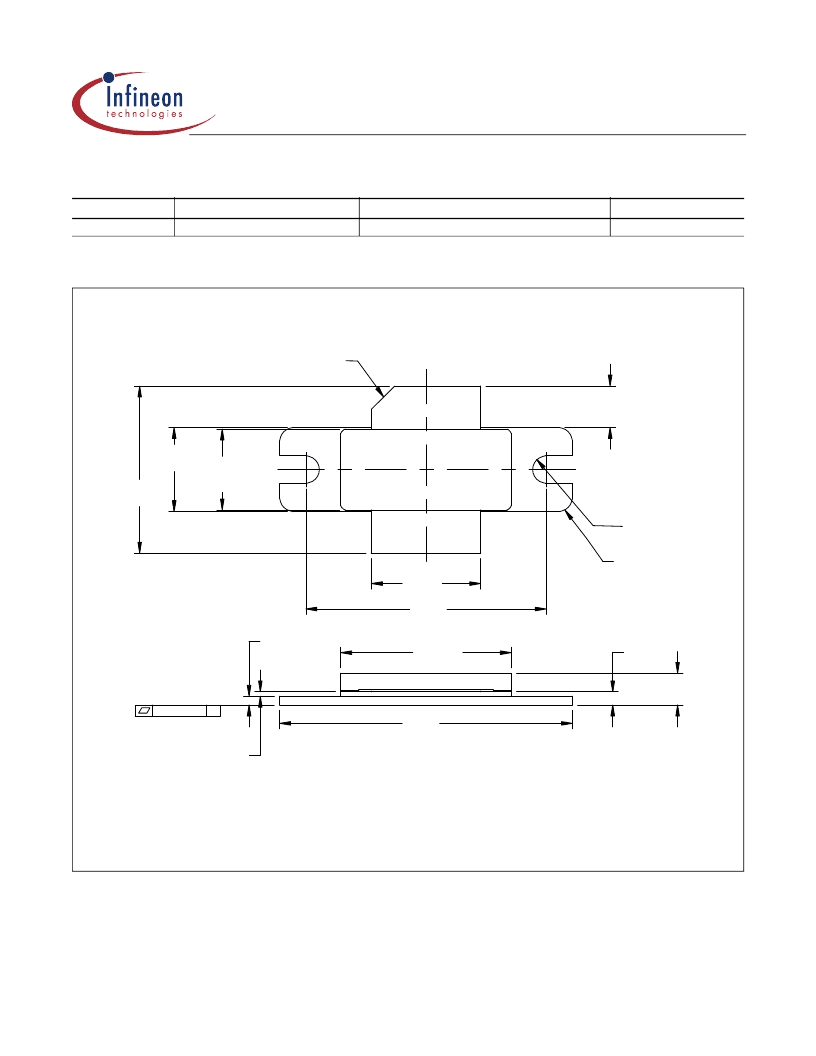

Package Outline Specifications
Package 30248
Ordering Information
Type
PTF210901E
Package Outline
30248
Package Description
Thermally enhanced, with flange
Marking
PTF210901E
Notes: Unless otherwise specified
1. Interpret dimensions and tolerances per ASME Y14.5M-1994.
2. Primary dimensions are mm. Alternate dimensions are inches.
3. Pins: D = drain, S = source, G = gate
4. Lead thickness: 0.10± +0.051/–0.025 [.004 +.002/–.001 ]
34.04
[1.340]
19.81± 0.20
[.780± .008]
1.02
[.040]
19.43 ± 0.51
[.765± .020]
(45° X 2.72
[.107])
2X 12.70
[.500]
2X 4.83± 0.51
[.190± .020]
27.94
[1.100]
LID 9.40
[.37+ .004
L
4X R1.52
[.060]
2X R1.63
[.064]
D
G
S
C
SPH 1.57
[.062]
9.78
[.385]
0.0381 [.0015]-A-
3.76± 0.38
[.142± .015]
0.51
[.020]
+ 0.10
-0.15
ERA-H-30248-2-1-2301
Find the latest and most complete information about products and packaging at the Infineon Internet page
http://www.infineon.com/products
