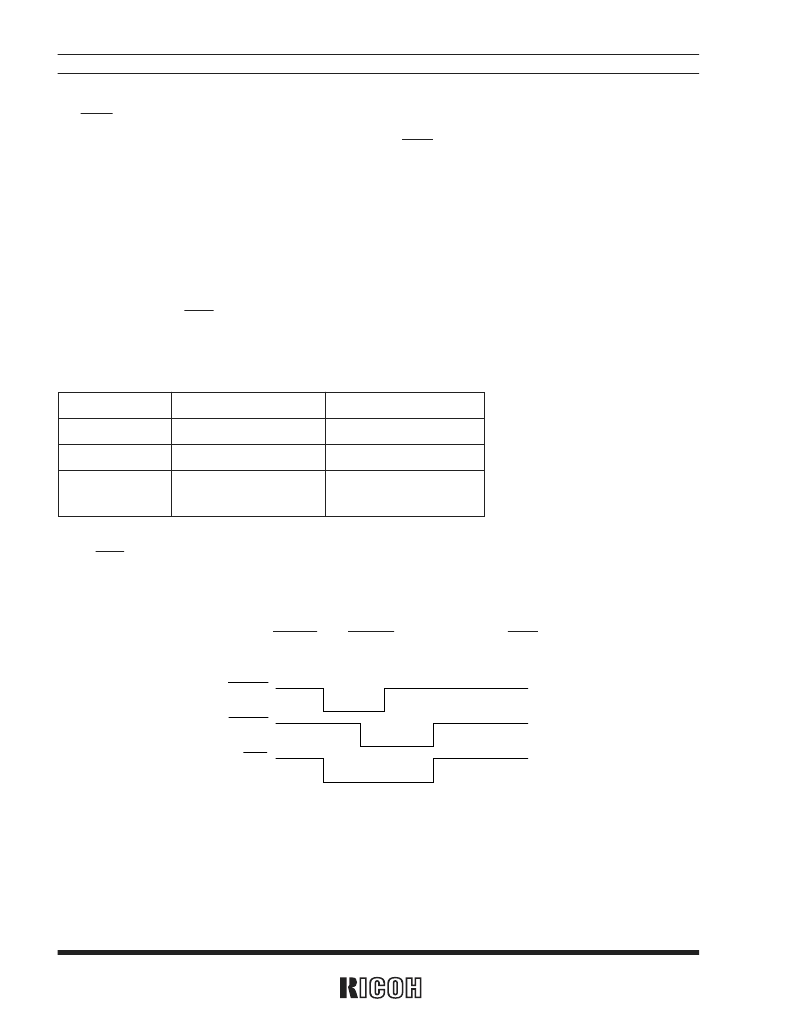

RS5C372A/B
42
4.2 INTR Output Pin
(RS5C372B)
The following three output wave forms can be output from the INTR pin.
1) Alarm interrupt
When a registered time for alarm (such as day-of-the-week, hour or minute) coincide with calendar counter (such
as day-of-the-week, hour or minute) interrupt to the CPU are requested with the output pin being on (“L”). Alarm
interrupt consists of Alarm_A and Alarm_B, both have equivalent functions.
2) Periodic interrupt
Outputs an output wave form selected by setting the periodic interrupt frequency select bit. Wave forms include
pulse mode and level mode.
4.2-1 Control of the INTR Output (flag bit, enable bit, interrupt output select bit) (RS5C372B)
Of the two output wave forms listed above, interrupt output conditions may be set by setting the flag bit that moni-
tors output state on the register, the enable bit that enables an output wave form.
Flag bit
Enable bit
Alarm_A
AAFG (D1 at Fh)
AALE (D7 at Eh)
Alarm_B
BAFG (D0 at Fh)
BALE (D6 at Eh)
Periodic interrupt
CTFG (D2 at Fh)
Disabled at CT
2
=CT
1
=CT
0
=0
(D2 to D0 at Eh)
· When power ON (XSTP=1) since AALE=BALE=CT
2
=CT
1
=CT
0
=0,
INTR=OFF (
“H”
).
· When more than one output wave forms are output from a single output pin, the output will have OR wave form of
negative logic of both.
Example: When Alarm_A and Alarm_B are output from the INTR pin.
Alarm_A
Alarm_B
INTR
In such a case which output wave form is output from the pin may be confirmed by reading
the flag register.
