RS5C372A/B
48
Software Setting
(1) Use periodic interrupt immediately after power on to output ON (“L”) from the INTRB pin.
(2) When you want to turn power off use Alarm_B or periodic interrupt to set a timing for power on and output it
from the INTRB. The INTRB remains off (“H”) until the timing specified, high voltage is applied to the regulator
CE pin thus power for the micro controller is turned off.
(3) On reaching the specified timing, the INTRB pin switches to on (“L”) and power turns on. Hereafter, power is
turned off by setting 0 to the BALFG or the CTFG and turned on again at a next timing specified.

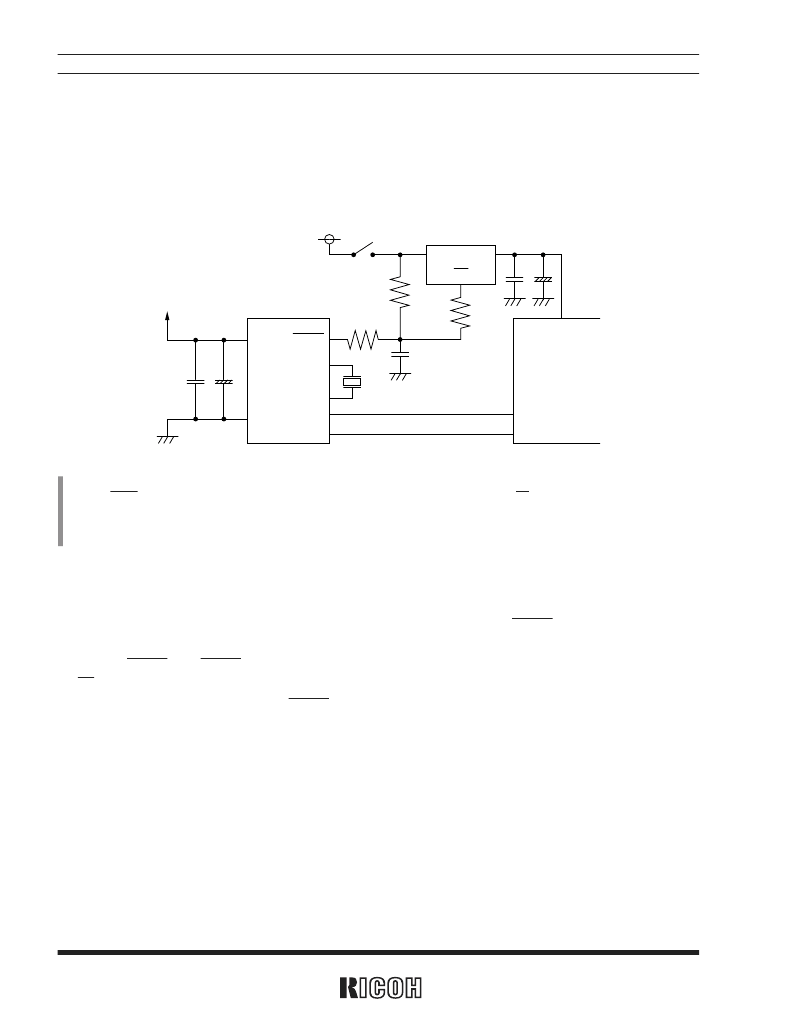

5.3 Example of Power Supply Wake-up Circuit
(RS5C372A only)
The sample circuit below has been designed so that system power supply turns on at a time set in the Alarm_B
using the Alarm_B of the RS5C372A and the RN5RZ
××
A (RN5RT
××
A)*
1
.
RN5RZ
××
A or
RN5RT
××
A
VDD VOUT
RS5C372A
CE
V
DD
Microcontroller
32.768kHz or 32.000kHz
VDD
VSS
OSCIN
OSCOUT
SCL
SDA
INTRB
System power supply
Backup power supply
*
1
*
2
*
3
*
3
*
4
*
1) The RN5RZ
××
A and the RN5RT
××
A are RICOH regulators with stand-by functions.
*
2) The INTRB of the RS5C372A outputs 32-kHz clock pulses on power on. A capacitor is included so that CE will not change to “H” while 32-kHz clock
is off (“H”) to allow the regulator to be turned on.
*
3) This resistor is used to prevent excess current from flowing into the pins of the RS5C372A/B and the RN5RZ
××
A (RN5RT
××
A) on power on.
*
4) Pull-up resistors of the SCL and SDA are not shown in the figure for clarity.
