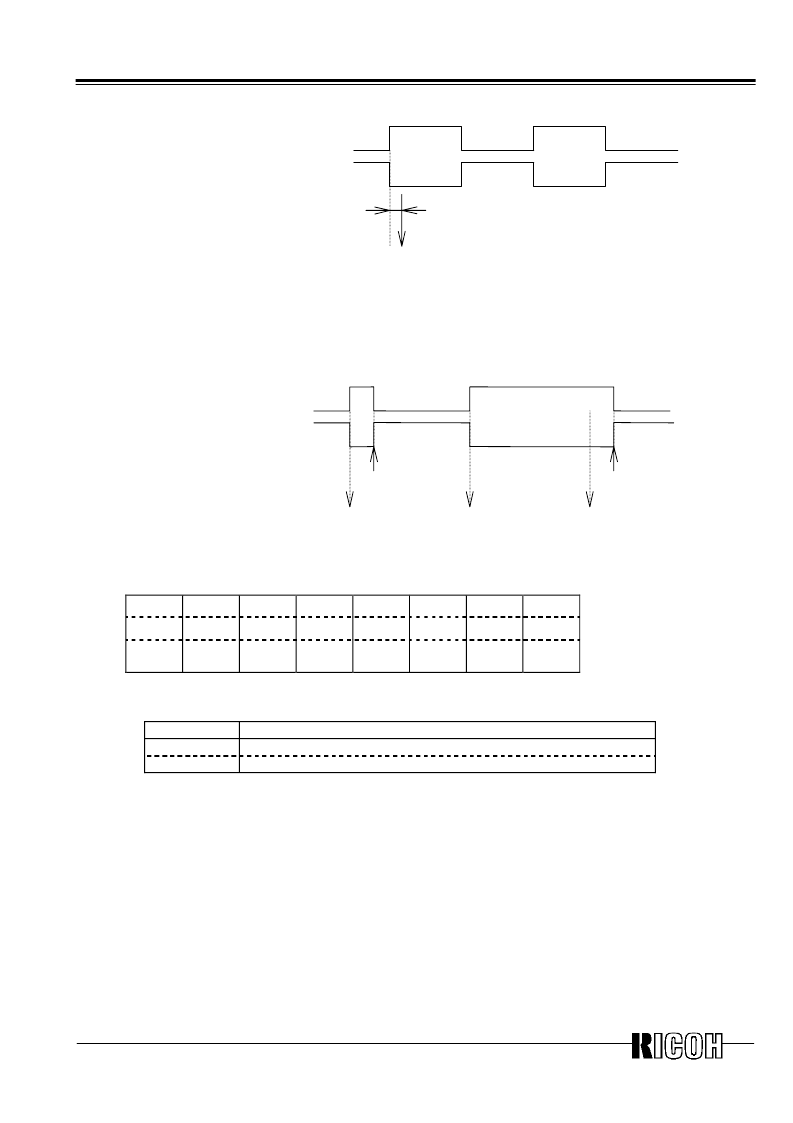

RS5C372B
- 11 -
Pulse mode
/INTR pin
(Counting up of seconds)
Approx. 92μs (32.768KHz crystal is used)
Approx. 94μs (32.000KHz cristal is used)
CTFG bit
*) Since counting up of seconds and the falling edge has a time lag of approx. 92μs (at
32.768kHz) (approx. 94μs when 32.000kHz crystal is used), time with apparently
approx. one second of delay from time of the real-time clock may be read when time is
read in synchronization with the falling edge of output.
Level mode
/INTR pin
(second count-up)
CTFG bit
Write 0 to CTFG bit
(second count-up)
(second count-up)
Write 0 to CTFG bit
2.2. Control Register 2 ( Internal address at Fh )
D7
D6
D5
D4
D3
D2
D1
D0
-
-
/12
24
/12
24
unde-
fined
ADJ
/CLEN
CTFG
AAFG
BAFG
(For Write operation )
0
0
0
0
XSTP
1
/CLEN
0
CTFG
0
AAFG
0
BAFG
0
(For Read operation )
Default (*)
*)The default means read values when XSTP=”1” by after initial power-on or supply voltage drop,etc.
2.2.1. /12
24
/12
24-hour Time Display Selection bit
/12
24
0
1
Description
12-hour time display system
24-hour time display system
Being set this bit at “0” indicates 12-hour display system while “1” indicates 24-hour system.
