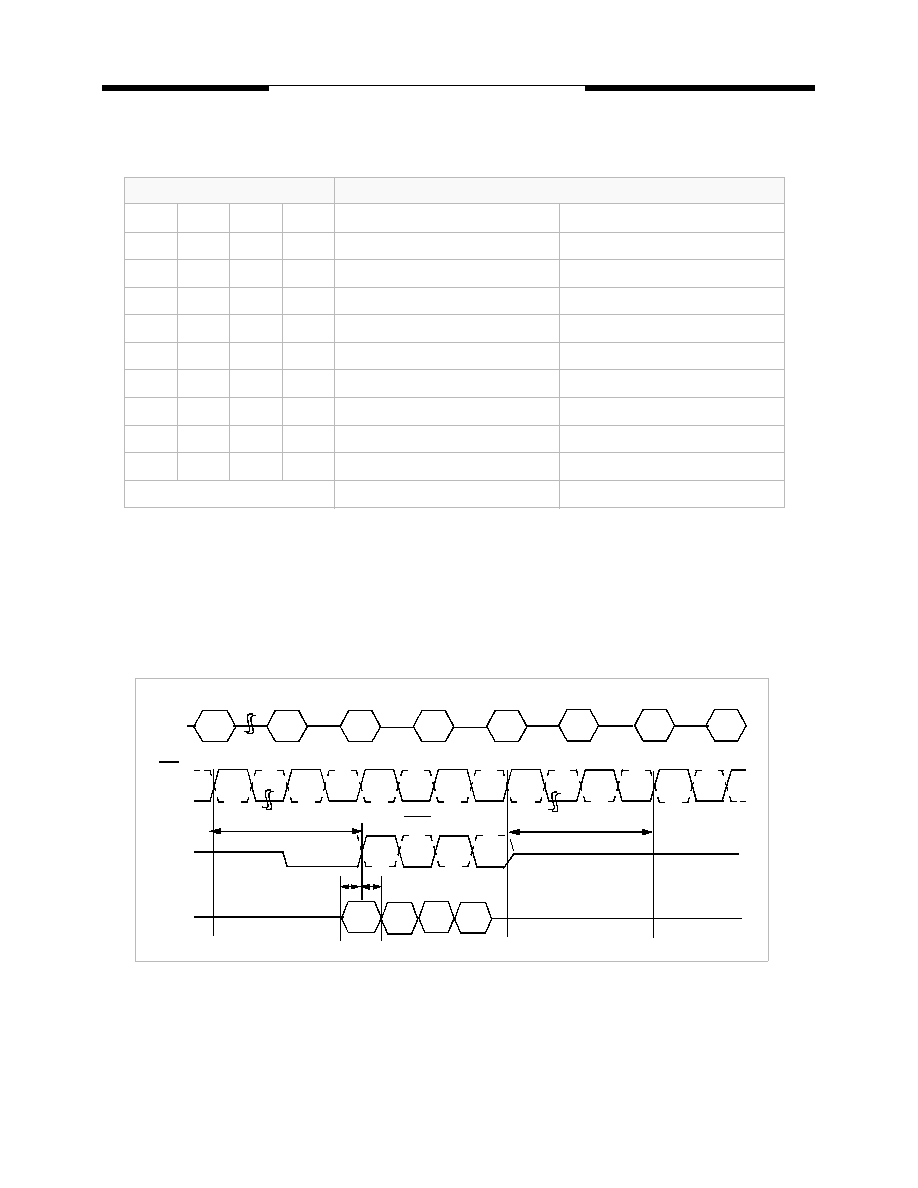

ProMOS TECHNOLOGIES
V59C1G01(408/808)QB
V59C1G01(408/808)QB Rev. 1.1 December 2008
Off- Chip-Driver Adjust Program
4 bit burst code inputs to all DQs
Operation
DT0
DT1
DT2
DT3
Pull-up driver strength
Pull-down driver strength
00
0
NOP (no operation)
00
0
1
Increase by 1 step
NOP
00
1
0
Decrease by 1 step
NOP
01
0
NOP
Increase by 1 step
10
0
NOP
Decrease by 1 step
01
0
1
Increase by 1 step
01
1
0
Decrease by 1 step
Increase by 1 step
10
0
1
Increase by 1 step
Decrease by 1 step
10
1
0
Decrease by 1 step
Other Combinations
Reserved
For proper operation of adjust mode, WL = RL - 1 = AL + CL -1 clocks and tDS / tDH should be met as the fol-
lowing timing diagram. Input data pattern for adjustment, DT0 - DT3 is fixed and not affected by MRS
addressing mode (i.e. sequential or interleave). Burst length of 4 have to be programmed in the MRS for OCD
impedance adjustment.
NOP
EMRS
CMD
CK
DQS_in
DQ_in
tDS tDH
WL
OCD adj ust mode
OCD calibratio n mode exit
tWR
EMRS
CK
DQS
NOP
DT0
DT1
DT2
DT3
