MELSEC FX0N/FX2N
SPECIAL FUNCTION MODULES
Communications Modules
The MELSECNET/MINI Network
Data communications
MELSECNET/MINI enables fast data ex-
change with a variety of devices. Equip-
ment you can integrate in this network
type includes:
Remote digital I/Os
Analog I/Os
High-speed counters
Remote intelligence modules
(e.g FX0N/FX2N)
Frequency inverters (FR-A 540)
Third-party equipment, e.g.
FESTO/SMC
Structure
The network’s ring topology enables a
very large maximum coverage:
Max. 1700 m with shielded twisted-
pair cabling
Max. 10000 m with shielded twisted-
pair cabling combined with fibre-
optics cables
Cable types
The network supports a variety of differ-
ent cable types as communications media:
Shielded twisted-pair
Acrylic fibre-optics cable (max. 50 m/
segment)
Glass fibre-optics cable SI200/250 m
(max. 1000 m/segment)
Glass fibre-optics cable GI50/125 m
(max. 2000 m/segment)
Data exchange
This network can transport a variety of dif-
ferent data without any problems, includ-
ing both digital and analog data.
An FX0N/FX2N controller configured as a
slave can exchange (transmit and receive)
up to 28 data words with the master PLC
(AnS, QnAS).
Administration
The programming software packages
MELSEC MEDOC plus and MELSEC MINI-P
make installation and set-up simple and
trouble-free.

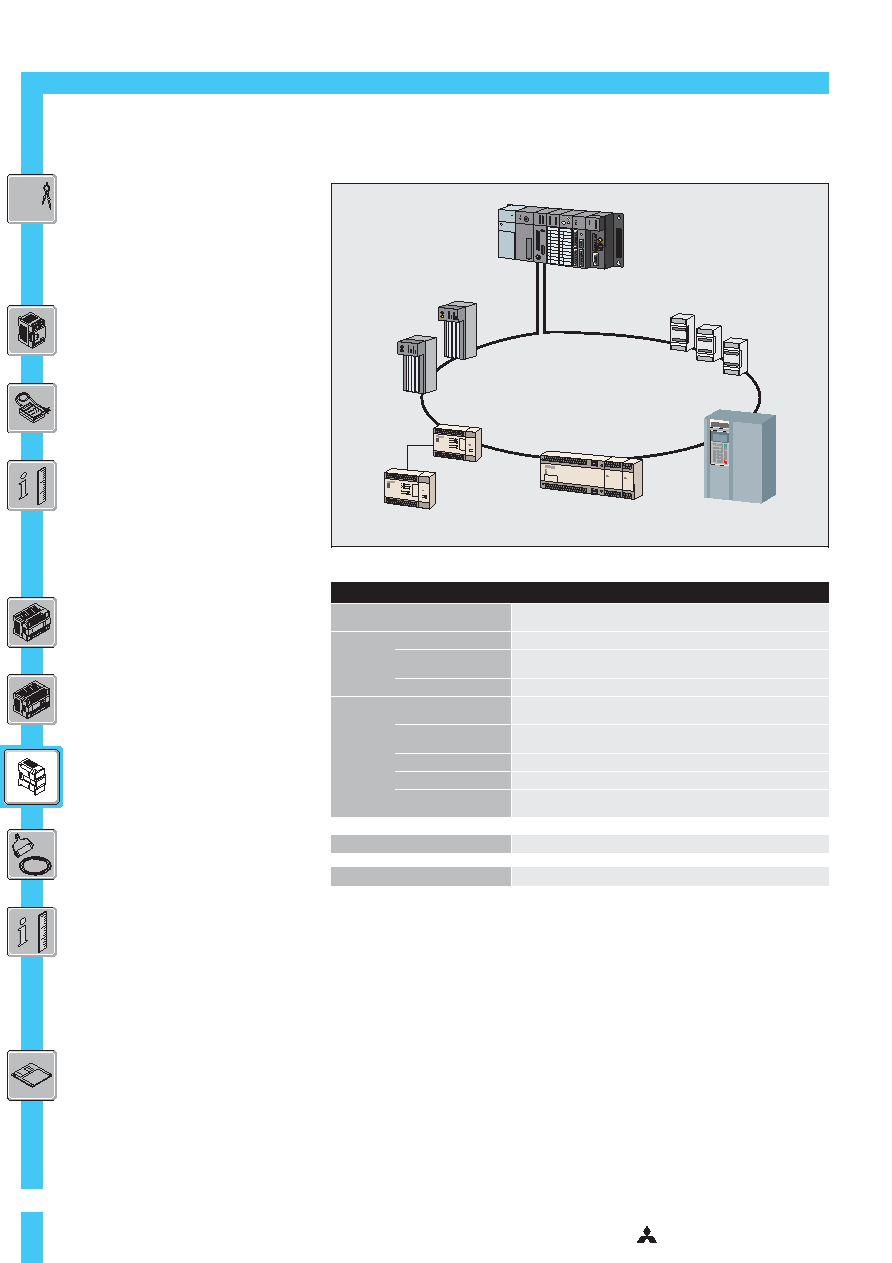

MELSECNET/MINI
Frequency inverter
AnS/QnAS
FX2N
FX2N/FX0N
with PPN network
Remote I/O
BASICS
X
FX
F
Specifications
Electrical
Optical
Cable type
Shielded
twisted-pair
Acrylic
fibre optic
Glass fibre
SI type
Glass fibre
GI type
Communi-
cations
rate
MBit/s 1.5
1.5
distance between
2stations
m 100
50
1000
2000
total coverage
m
≤ 1700
≤ 850
≤6000
≤ 10000
Media
internal resistance
(at 20 °C)
≤ 88 / km
—
electrostatic
capacity
nF
≤ 60 / km
—
impedance(100kHz)
110 (±10)
—
transmission losses
—
≤ 260 dB/ km
≤12 dB/ km
≤ 3dB/ km
inner/outer
diameter
m —
980 / 1000
200 / 250
50 / 125
Connectors
Connection system
RG59
CA9104AP
CA9003
CA9003S
Order information
Art. no.
17530
9546
29603
Recommended shielded twisted-pair cabling (2 pairs): Lappkabel Unitronic Li2YCY (TP) paired (up to 100 m) or
Unitronic Li2YCY (TP) finely-stranded (up to 50 m)
MITSUBISHI ELECTRIC
42
