HT9580
25
April 28, 2000
Preliminary

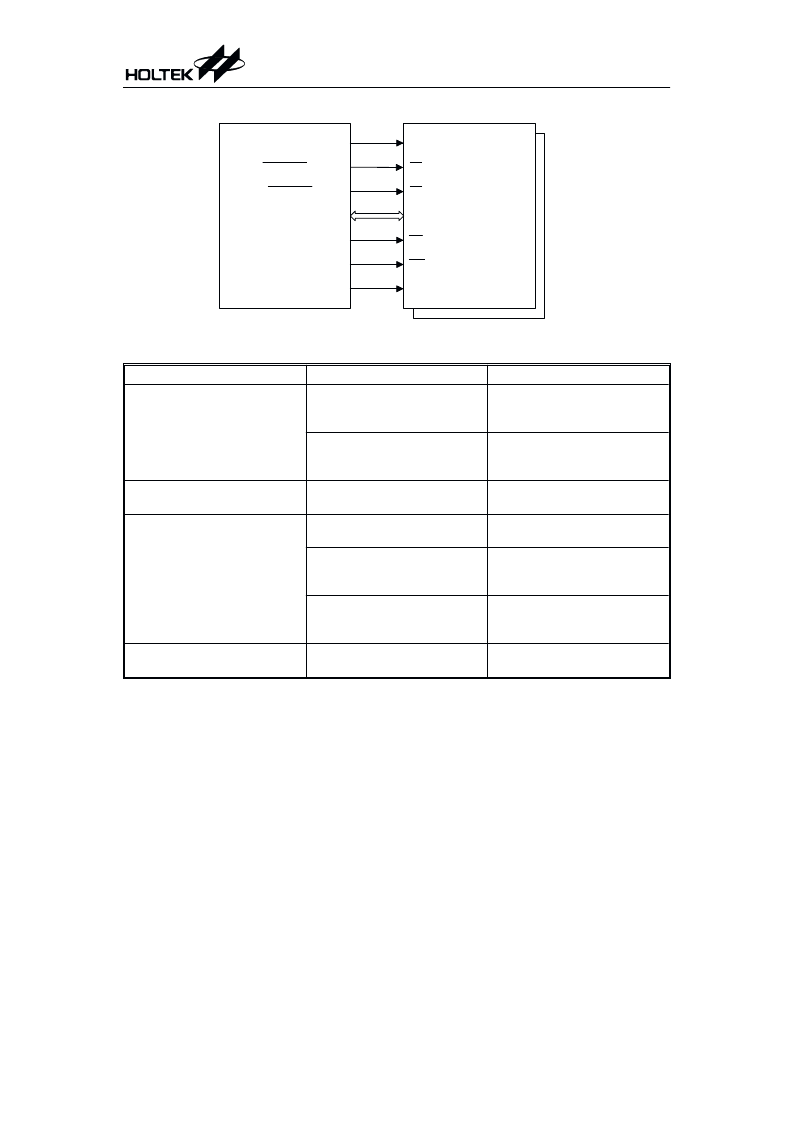

LCD Driver Chip Selection
Application
Note
LCD-CHIP0="0"
LCD-CHIP1="0"
SEDX(EPSON) series LCD
driver at 68 family MPU appli-
cation mode.
RESET is low active
KSX(SAMSUNG) series LCD
driver at 68 family MPU appli-
cation mode.
Pin options set as 68 family
MPU application mode.
LCD-CHIP0="1"
LCD-CHIP1="0"
MC14X(MOTOROLA) series
LCD driver.
LCD-CHIP0="0"
LCD-CHIP1="1"
HD66410(HITACHI) series
LCD driver.
SEDX(EPSON) series LCD
driver at 80 family MPU
application mode.
RESET is high active
KSX(SAMSUNG) series LCD
driver at 80 family MPU appli-
cation.
Pin options set as 80 family
MPU application mode.
LCD-CHIP0="1"
LCD-CHIP1="1"
N/A
!< %
= !< %
=
=
= :
=
= !%
!
%
<
$ <
5 4 4 $ $ 5 # $ B - G; 0 G B - G;
:
,
*
)
(
+
, "
Power down operation
HALT
The HALT mode is initiated by setting the con-
figurationregisterbitHALThighandresultsin
the following ...
The system clock turns off, the low power pager
sub-clock, LCD driver, pager decoder and RTC
all keep running.
The contents of the on-chip RAM and of the reg-
ister remain unchanged.
As the WDT and the WDT prescaler depend on
software control, the WDT will continue to
count when the HALT bit is set high.
AlltheI/Oportsremainintheiroriginalstatus.
