Data Sheet
10
2004-05-03
PTF180601

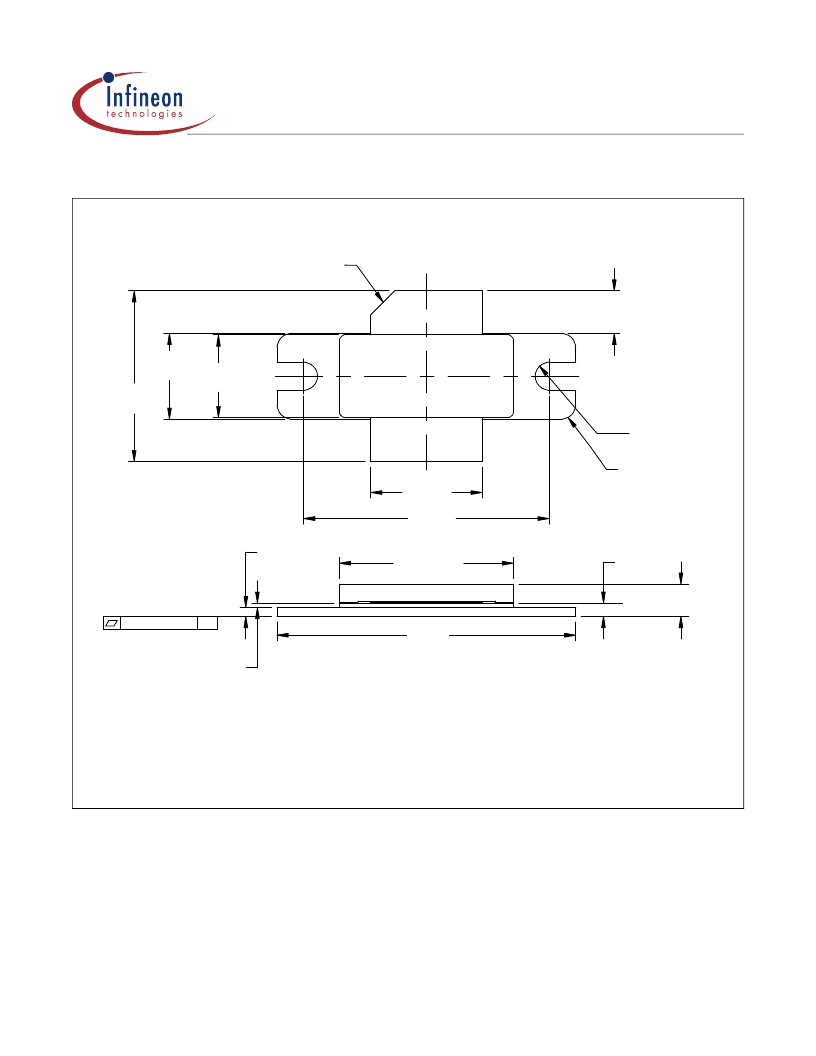

Package Outline Specifications
(cont.)
Package 30248
Notes: Unless otherwise specified
1.
Interpret dimensions and tolerances per ASME Y14.5M-1994.
2.
Primary dimensions are mm. Alternate dimensions are inches.
3.
Pins: D = drain, S = source, G = gate
4.
Lead thickness: 0.10 +0.051/–0.025 [.004 +.002/–.001]
Find the latest and most complete information about products and packaging at the Infineon Internet page
http://www.infineon.com/products
34.04
[1.340]
19.81± 0.20
[.780± .008]
1.02
[.040]
19.43 ± 0.51
[.765± .020]
(45° X 2.72
[.107])
2X 12.70
[.500]
2X 4.83± 0.51
[.190± .020]
27.94
[1.100]
4X R1.52
[.060]
2X R1.63
[.064]
D
G
S
9.78
[.385]
0.0381 [.0015]
-A-
0.51
[.020]
P K G _248_0
C
C
LID 9.40
+-0.15
[.370 ]
3.76± 0.38
[.142± .015]
SPH 1.57
[.062]
