TPS2345
SLUS503B – MARCH 2002 – REVISED AUGUST 2002
19
www.ti.com
APPLICATION INFORMATION
UDG–02006
t0:
BD_SEL# input brought low to initiate a turn-on sequence.
t1:
Channel 1 (12V) gate enabled; IRAMP capacitor starts charging with slow turn-on clamp.
Slow charging of load voltage (back-end 12V) begins.
t2:
Slow turn-on period ends; linear ramp of current to the load begins.
t3:
Constant di/dt period ends; load voltage ramping continues at IMAX rate.
t4:
Back–End 12V reaches input DC potential.
t5:
Channel 2 (5V) gate is enabled. Slow charging of load voltage (back-end 5V) begins. Fault monitoring on Ch. 1 enabled.
t6:
Slow turn-on period ends; linear ramp of current to load begins.
t7:
Constant di/dt period ends. Load voltage ramping continues at IMAX rate.
t8:
Back–End 5V reaches input DC potential.
t9:
Channel 3 (3.3V) gate is enabled. Slow charging of load voltage (back-end 3.3V) begins. Fault monitoring on Ch. 2 enabled.
t10: Slow turn–on period ends; linear ramp of current to the load begins.
t11: Constant di/dt period ends. Load voltage ramping continues at IMAX rate.
t12: Back–End 3.3V reaches input DC potential.
t13: Channel 4 (–12V) gate is enabled. Slow charging of load voltage (back-end –12V) begins. Fault monitoring on Ch. 3 enabled.
t14: Slow turn-on period ends; linear ramp of current to load begins.
t15: Constant di/dt period ends; load voltage ramping continues at IMAX rate.
t16: Back-end –12V reaches input DC potential.
t17: Channel 4 UV/OV fault enable pulse.
t18: HEALTHY# output pulled low.
HEALTHY#
t0 t1 t2
t3
t4
t5 t6
t7
t8
t9 t10
t11
t12
t13 t14
t15
t16
t17 t18
0 V
5 V
0 V
12 V
–12 V
0 V
1.35 V
1.5 V
BD_SEL#
3.3 V
VO(IRAMP)
BACK-END
12-V
BACK-END
5-V
BACK-END
3.3-V
BACK-END
–12-V

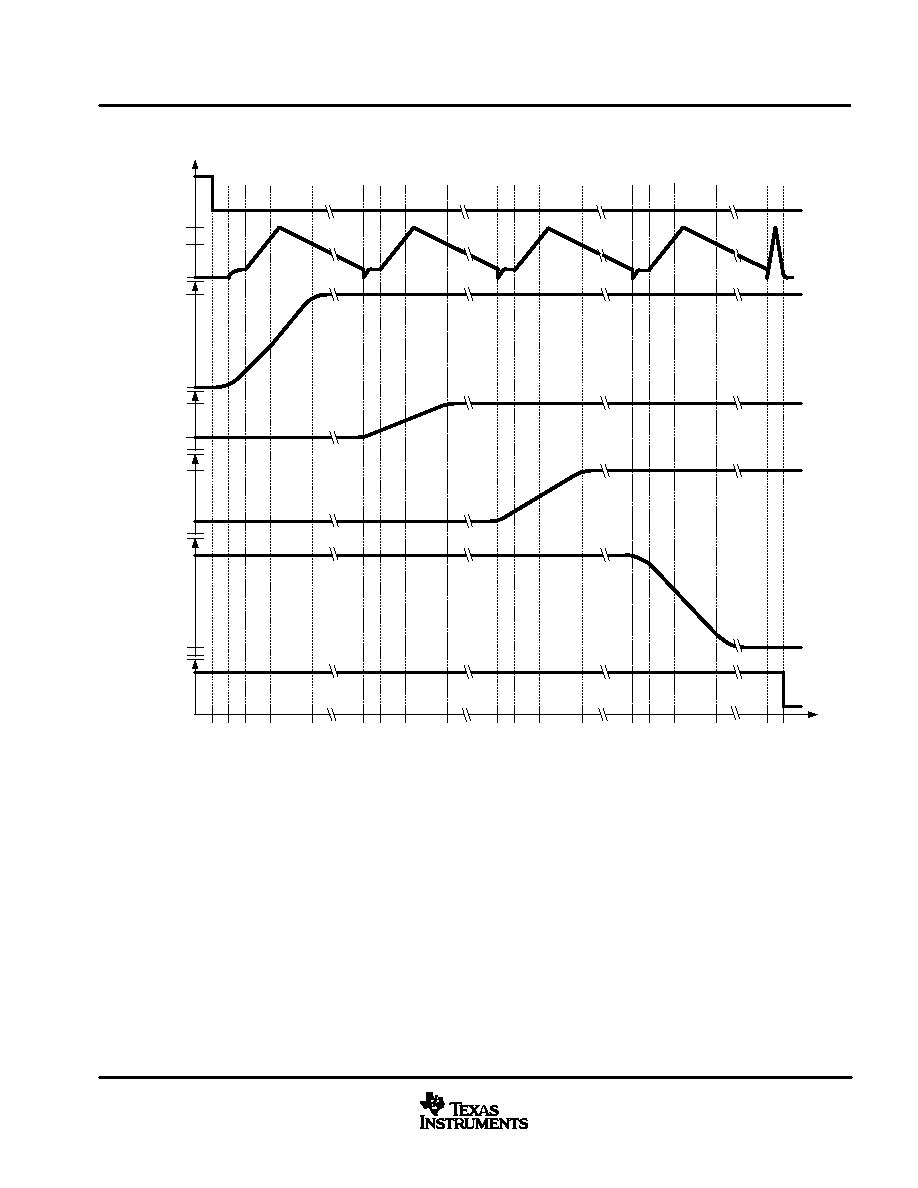

Figure 19. TPS2345 Ramp-Up Sequence
