參數資料
型號： ATTINY13V-10SSUR
廠商： Atmel
文件頁數： 117/176頁
文件大?。?/td> 0K
描述： MCU AVR 1KB FLASH 10MHZ 8SOIC
產品培訓模塊： tinyAVR Introduction
標準包裝： 4,000
系列： AVR® ATtiny
核心處理器： AVR
芯體尺寸： 8-位
速度： 10MHz
外圍設備： 欠壓檢測/復位，POR，PWM，WDT
輸入/輸出數： 6
程序存儲器容量： 1KB（512 x 16）
程序存儲器類型： 閃存
EEPROM 大?。?/td> 64 x 8
RAM 容量： 64 x 8
電壓 - 電源 (Vcc/Vdd)： 1.8 V ~ 5.5 V
數據轉換器： A/D 4x10b
振蕩器型： 內部
工作溫度： -40°C ~ 85°C
封裝/外殼： 8-SOIC（0.154"，3.90mm 寬）
包裝： 帶卷 (TR)
其它名稱： ATTINY13V-10SSUR-ND
ATTINY13V-10SSURTR
45
2535J–AVR–08/10
ATtiny13
9.2
External Interrupts
The External Interrupts are triggered by the INT0 pin or any of the PCINT5..0 pins. Observe that,
if enabled, the interrupts will trigger even if the INT0 or PCINT5..0 pins are configured as out-
puts. This feature provides a way of generating a software interrupt. Pin change interrupts PCI
will trigger if any enabled PCINT5..0 pin toggles. The PCMSK Register control which pins con-
tribute to the pin change interrupts. Pin change interrupts on PCINT5..0 are detected
asynchronously. This implies that these interrupts can be used for waking the part also from
sleep modes other than Idle mode.
The INT0 interrupts can be triggered by a falling or rising edge or a low level. This is set up as
indicated in the specification for the MCU Control Register – MCUCR. When the INT0 interrupt is
enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held
low. Note that recognition of falling or rising edge interrupts on INT0 requires the presence of an
9.2.1
Low Level Interrupt
A low level interrupt on INT0 is detected asynchronously. This implies that this interrupt can be
used for waking the part also from sleep modes other than Idle mode. The I/O clock is halted in
all sleep modes except Idle mode.
Note that if a level triggered interrupt is used for wake-up from Power-down, the required level
must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If
the level disappears before the end of the Start-up Time, the MCU will still wake up, but no inter-
rupt will be generated. The start-up time is defined by the SUT and CKSEL fuses as described in
If the low level on the interrupt pin is removed before the device has woken up then program
execution will not be diverted to the interrupt service routine but continue from the instruction fol-
lowing the SLEEP command.
9.2.2
Pin Change Interrupt Timing

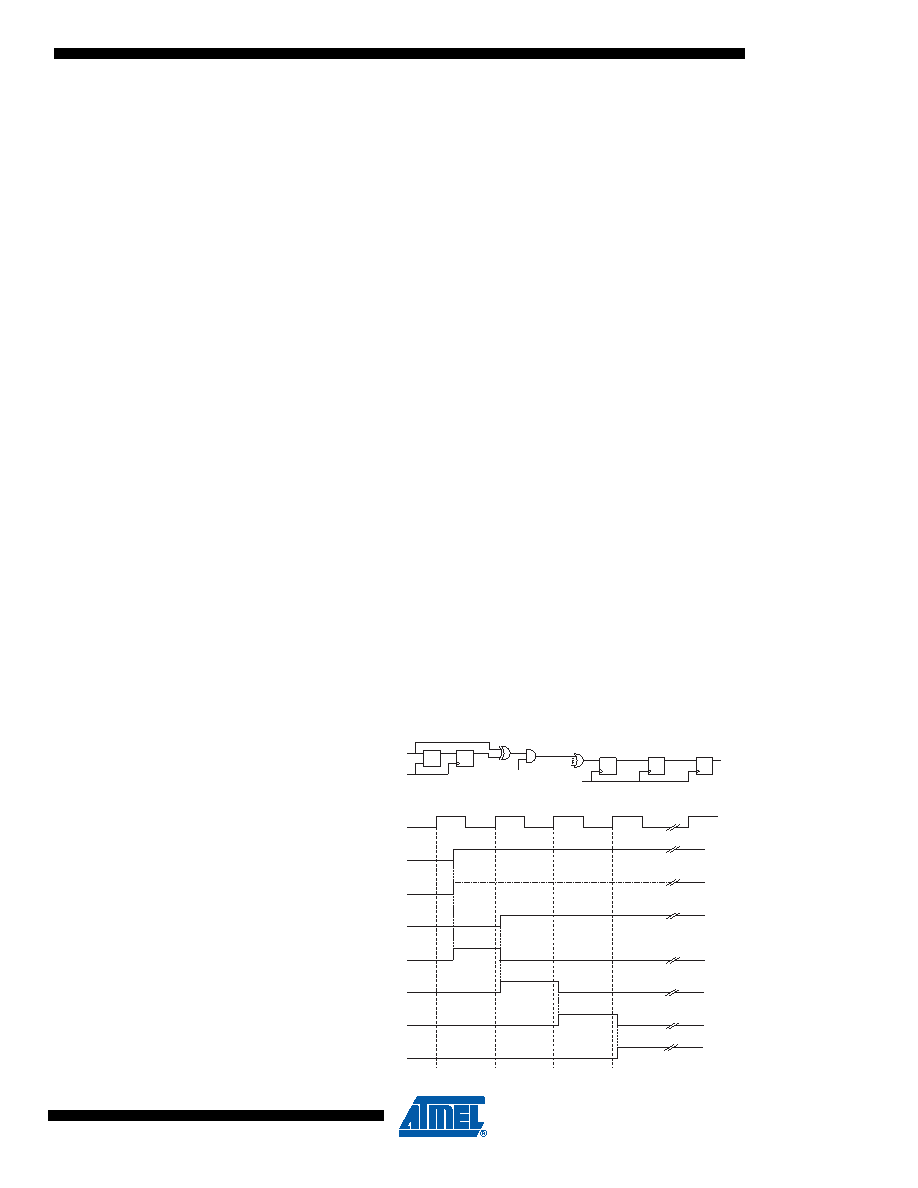

An example of timing of a pin change interrupt is shown in Figure 9-1 below.
Figure 9-1.
Timing of pin change interrupts
clk
PCINT(n)
pin_lat
pin_sync
pcint_in_(n)
pcint_syn
pcint_setflag
PCIF
PCINT(0)
pin_sync
pcint_syn
pin_lat
D
Q
LE
pcint_setflag
PCIF
clk
PCINT(0) in PCMSK(x)
pcint_in_(0)
0
x
