MASTER DATA SHEET - Rev 2.1
10/2008
AWT6132R
5
APPLICATION INFORMATION
To ensure proper performance, refer to all related
Application Notes on the ANADIGICS web site:
http://www.anadigics.com
Shutdown Mode
The power amplifier may be placed in a shutdown
mode by applying logic low levels (see Operating
Ranges table) to both the VREF and VMODE voltages.

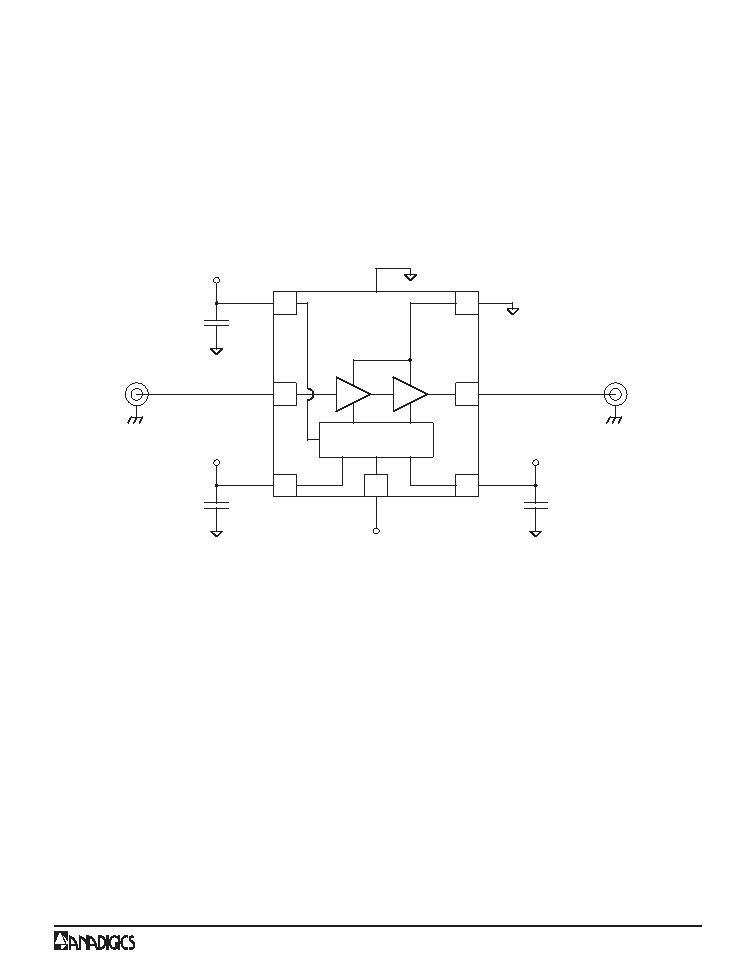

Figure 3: Application Circuit Schematic
High Bias Mode
The power amplifier may be placed in a high bias mode
by applying a logic low level (see Operating Ranges
table) to the VMODE voltage.
(50 Ohms)
RF Input
4.7uF
0.1uF
4.7uF (ceramic)
GND at slug (pad)
Bias Control
1
4
3
6
7
2
5
GND
VCC
VREF
VMODE
RF Out
(ceramic)
