Philips Semiconductors
BUK7720-55A
N-channel TrenchMOS standard level FET
Product data
Rev. 02 — 7 June 2004
8 of 12
9397 750 13202
Koninklijke Philips Electronics N.V. 2004. All rights reserved.
V
DS
= 25 V

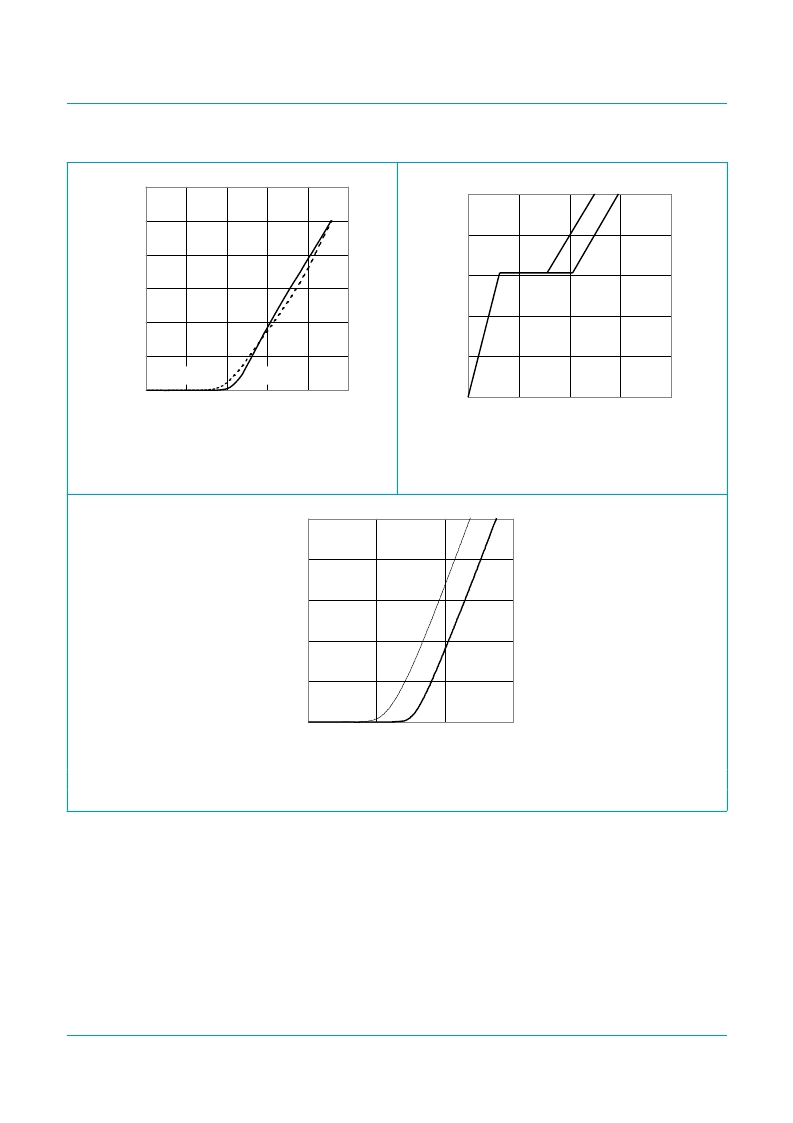

Fig 13. Transfer characteristics: drain current as a
function of gate-source voltage; typical values.
T
j
= 25
°
C; I
D
= 25 A
Fig 14. Gate-source voltage as a function of gate
charge; typical values.
V
GS
= 0 V
Fig 15. Source (diode forward) current as a function of source-drain (diode forward) voltage; typical values.
03ne22
0
20
40
60
80
100
120
0
2
4
6
8
10
VGS (V)
ID
(A)
Tj = 150 oC
Tj = 25 oC
03nc59
0
2
4
6
8
10
VGS
(V)
0
10
20
30
40
QG (nC)
VDD = 44 V
VDD = 14 V
03ne23
0
20
40
60
80
100
0.0
0.5
1.0
1.5
VSD (V)
IS
(A)
Tj = 25 oC
Tj = 150 oC
