2001 Integrated Device Technology, Inc.
1
DSC-3240/3
!"#" $!%&!'
())&!")*&+
The IDT77301 UtopiaFIFO is a high-speed, low power single input
port supplying four demultiplexing FIFO output ports. Each of the four
output synchronous (clocked) FIFOs are 64 words (128 bytes) in depth.
Data is written to the input port in “cells” (fixed length data packets). The
cell size is programmable from16 bytes to 128 bytes.
The input port can be configured to support 9-bit or 18-bit wide data
buses. (Multiple 77301’s can be configured to handle 32 and 64-bit buses
with no additional logic.)
There are four routing methods that can be used to transfer data to the
77301. Two methods use out-band routing for the port selection, which
requires use of the Address Location bus. The remaining two methods
support in-band routing, which uses the Address Location bus in conjunc-
tion with the Data bus for port selection. Utopia 2 signaling supports single
cell transfers to single output ports, but the 77301 also offers a proprietary
multicasting protocol. Multicasting enables a single cell to be transferred
simultaneously to multiple selected output ports.
The four output ports can be configured as 9-bit or 4-bit wide data
buses. (18-bit wide buses can be supported with multiple 77301’s with no
)!&)*,
Data transfers on fixed cell sizes
Programmable cell size
One input port to four output ports
Four Independent output 128 x 9 FIFO Queues
Selectable eighteen bit or nine bit input bus
Selectable eight/nine bit or four bit output buses
Programmable chip Identification
“UtopiaTx” level 2 compliant input interface signaling
“UtopiaTx” level 1 compliant output interface signaling
Separate clocks for input and output
Selectable In-band or Out-band routing
Multicast capability
Data clock rates to 62.5 MHz, 10ns access time
Building Block Implementation allows up to 32 output channels with
a 18, 36 or 64-bit input bus
Four 562 Mbps output channels can be derived froma single
1.1256 Gbps input channel with no additional glue logic
100-pin TQPF package

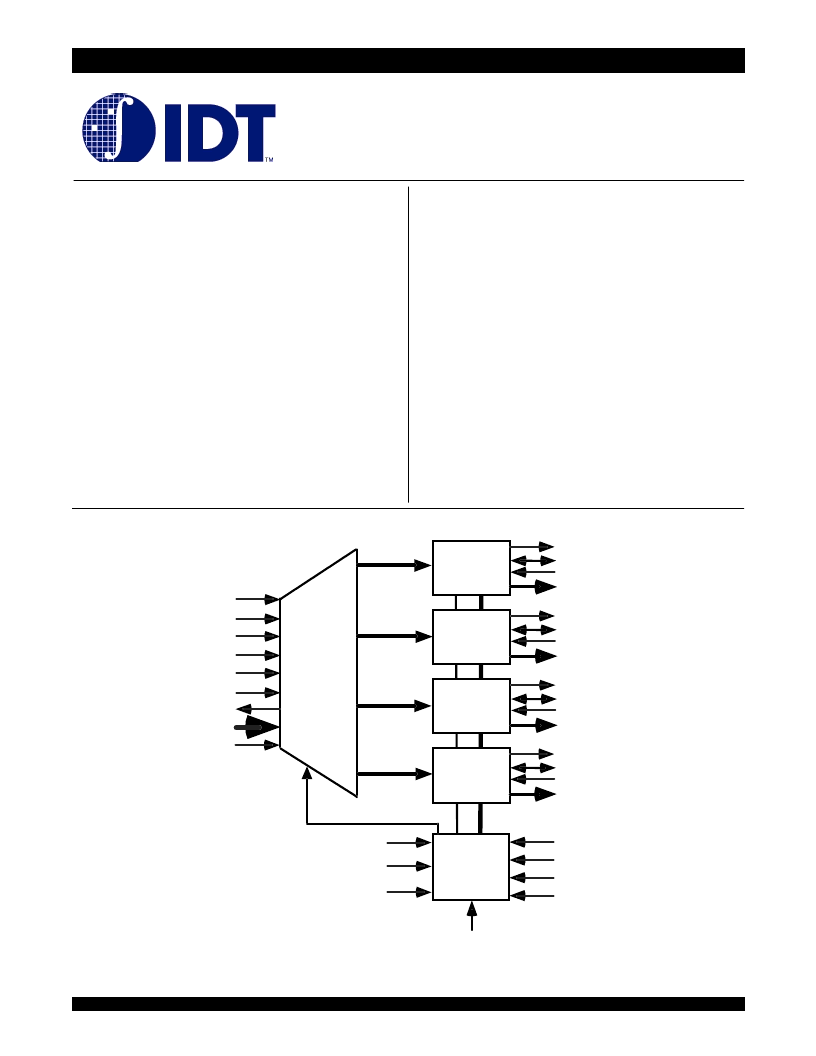

CONTROL
REGISTER
128 BYTE
FIFO
SOCS - a
- a
CLAVS - a
Data - a (D0-D8)
128 BYTE
FIFO
128 BYTE
FIFO
128 BYTE
FIFO
RMS
MAS
BSS
3240 drw 01
SOCR
CLAVR
Data (D0-D17)
WCLK
MSE
BNE
SCLK
SDI/P_ID0
RCLK
ADR (0-4)
SOCS - b
- b
CLAVS - b
Data - b (D0-D8)
SOCS - c
- c
CLAVS - c
Data - c (D0-D8)
SOCS - d
- d
CLAVS - d
Data - d (D0-D8)
