IDT82V2082
DUAL CHANNEL T1/E1/J1 LONG HAUL/SHORT HAUL LINE INTERFACE UNIT
FUNCTIONAL DESCRIPTION
31
May 4, 2009
3.6
LOS AND AIS DETECTION
3.6.1
LOS DETECTION
The Loss of Signal Detector monitors the amplitude of the incoming sig-
nal level and pulse density of the received signal on RTIPn and RRINGn.
LOS declare (LOS=1)
A LOS is detected when the incoming signal has “no transitions”, i.e.,
when the signal level is less than Q dB below nominal for N consecutive
pulse intervals. Here N is defined by LAC bit (MAINT0, 0CH...). LOS will be
declared by pulling LOSn pin to high (LOS=1) and LOS interrupt will be gen-
erated if it is not masked.
LOS clear (LOS=0)
The LOS is cleared when the incoming signal has “transitions”, i.e.,
when the signal level is greater than P dB below nominal and has an aver-
age pulse density of at least 12.5% for M consecutive pulse intervals, start-
ing with the receipt of a pulse. Here M is defined by LAC bit (MAINT0,
0CH...). LOS status is cleared by pulling LOSn pin to low.

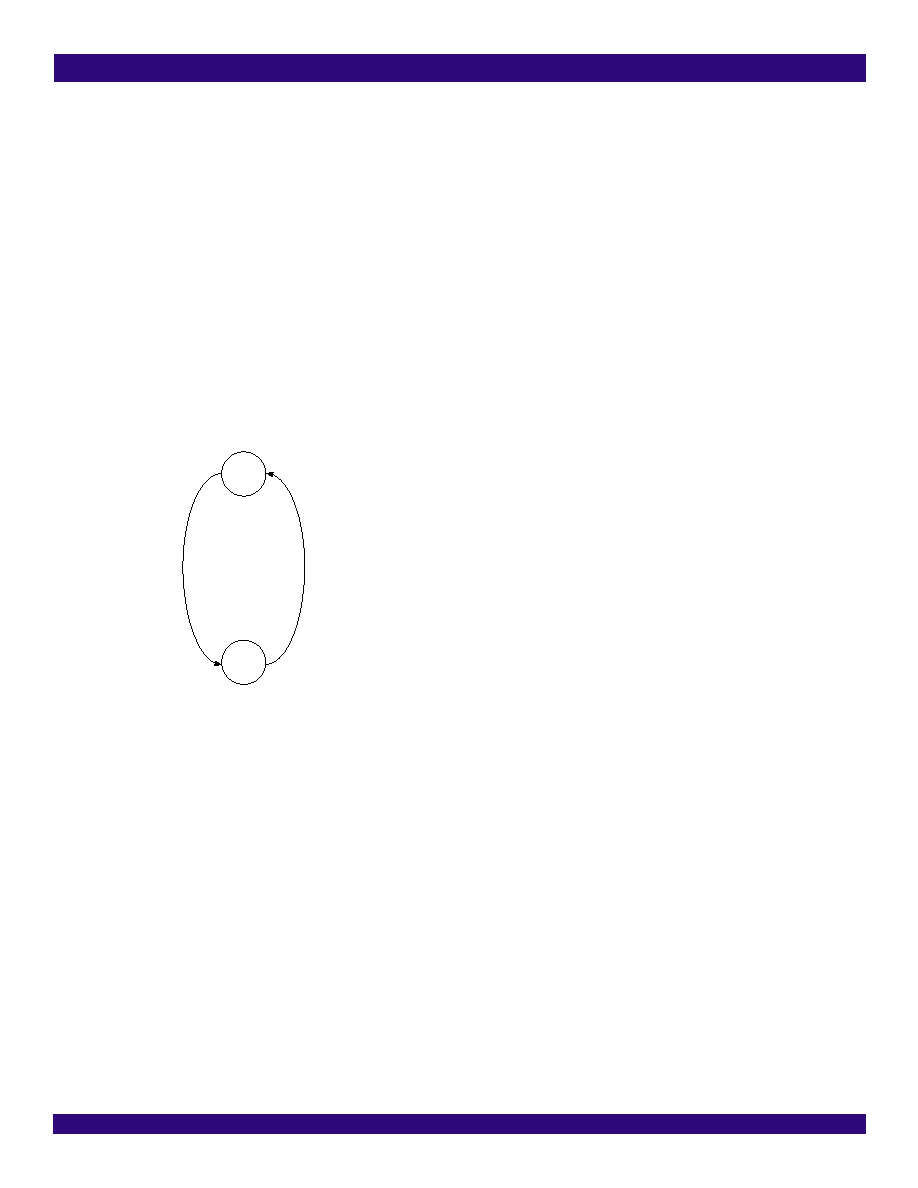

Figure-14 LOS Declare and Clear
LOS detect level threshold
In short haul mode, the amplitude threshold Q is fixed on 800 mVpp,
while P=Q+200 mVpp (200 mVpp is the LOS level detect hysteresis).
Inlonghaulmode,thevalueofQcanbeselectedbyLOS[4:0] bit(RCF1,
0AH...), while P=Q+4 dB (4 dB is the LOS level detect hysteresis). The
LOS[4:0] default value is 10101 (-46 dB).
When the chip is configured by hardware, the LOS detect level is fixed
if the IDT82V2082 operates in long haul mode. It is -46dB (E1) and -38dB
(T1/J1).
Criteria for declare and clear of a LOS detect
The detection supports the ANSI T1.231 and I.431 for T1/J1 mode and
G.775 and ETSI 300233/I.431 for E1 mode. The criteria can be selected
by LAC bit (MAINT0, 0CH...) and T1E1 bit (GCF, 20H).
both short haul and long haul application.
All Ones output during LOS
On the system side, the RDPn/RDNn will reflect the input pulse “transi-
tion” at the RTIPn/RRINGn side and output recovered clock (but the quality
of the output clock can not be guaranteed when the input level is lower than
the maximum receive sensitivity) when AISE bit (MAINT0, 0CH...) is 0; or
output All Ones as AIS when AISE bit (MAINT0, 0CH...) is 1. In this case
RCLKn output is replaced by MCLK.
On the line side, the TTIPn/TRINGn will output All Ones as AIS when
ATAO bit (MAINT0, 0CH...) is 1. The All Ones pattern uses MCLK as the
reference clock.
LOS indicator is always active for all kinds of loopback modes.
signal level<Q
(observing windows= N)
(observing windows= M)
signal level>P
density=OK
LOS=1
LOS=0
