| 型號： | MAX9880AETM+T |
| 廠商： | Maxim Integrated Products |
| 文件頁數： | 54/70頁 |
| 文件大小： | 0K |
| 描述： | IC CODEC AUDIO STEREO 48TQFN |
| 產品培訓模塊： | Lead (SnPb) Finish for COTS Obsolescence Mitigation Program |
| 標準包裝： | 2,500 |
| 類型： | 立體聲音頻 |
| 數據接口： | I²C，I²S，串行，SPI? |
| ADC / DAC 數量： | 2 / 2 |
| 三角積分調變： | 是 |
| 動態范圍，標準 ADC / DAC (db)： | 82 / 96 |
| 電壓 - 電源，模擬： | 1.65 V ~ 1.95 V |
| 電壓 - 電源，數字： | 1.65 V ~ 1.95 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 48-WFQFN 裸露焊盤 |
| 供應商設備封裝： | 48-TQFN-EP（6x6） |
| 包裝： | 帶卷 (TR) |
第1頁第2頁第3頁第4頁第5頁第6頁第7頁第8頁第9頁第10頁第11頁第12頁第13頁第14頁第15頁第16頁第17頁第18頁第19頁第20頁第21頁第22頁第23頁第24頁第25頁第26頁第27頁第28頁第29頁第30頁第31頁第32頁第33頁第34頁第35頁第36頁第37頁第38頁第39頁第40頁第41頁第42頁第43頁第44頁第45頁第46頁第47頁第48頁第49頁第50頁第51頁第52頁第53頁當前第54頁第55頁第56頁第57頁第58頁第59頁第60頁第61頁第62頁第63頁第64頁第65頁第66頁第67頁第68頁第69頁第70頁
MAX9880A
Low-Power, High-Performance
Dual I2S Stereo Audio Codec
58
______________________________________________________________________________________
CS
SCLK
DIN
DOUT
HIGH-Z
R/W
ADDR9
ADDR0
UNUSED4
UNUSED0
D7
D0
1 DATA BYTE

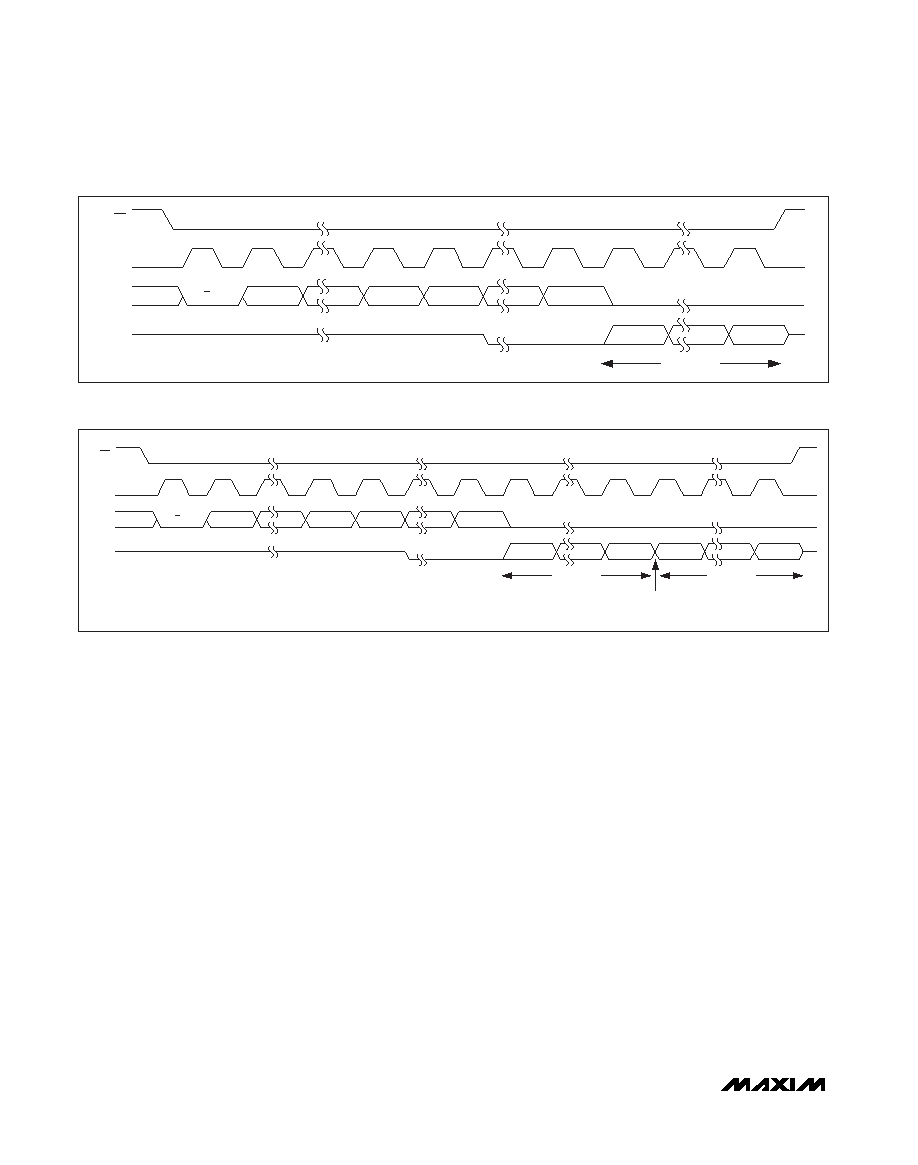

Figure 12. Reading 1 Byte of Data from the MAX9880A
SCLK
DIN
DOUT
HIGH-Z
R/W
ADDR9
ADDR0
UNUSED4
UNUSED0
D7
D0
1 DATA BYTE
CS
D7
D0
AUTOINCREMENT INTERNAL
REGISTER ADDRESS POINTER
Figure 13. Reading n Bytes of Data from the MAX9880A
SMBus is a trademark of Intel Corp.
do not change until the transfer is complete. The DOUT
output is high impedance when writing the register
address bits. If the correct register address is decod-
ed, DOUT is driven low at the first rising clock edge
after the first unused bit.
Figure 12 illustrates the proper frame format for reading
1 byte of data from the MAX9880A.
When reading data from the MAX9880A, the address
pointer autoincrements by one register address if CS is
held low after reading the first 8 data bits. For each
subsequent eight clock cycles, a byte of data is read.
This autoincrement feature allows a master to read
sequential registers within one continuous SPI register
address range from 0x200 to 0x227. The register
address does not autoincrement if a read is initiated at
a register address lower than 0x200. If the register
address increments beyond 0x227, the DOUT output is
high impedance. Figure 13 illustrates the proper format
for reading multiple bytes of data.
I2C Serial Interface
The MAX9880A features an I2C/SMBus-compatible,
2-wire serial interface consisting of a serial-data line
(SDA) and a serial-clock line (SCL). SDA and SCL
facilitate communication between the MAX9880A and
the master at clock rates up to 400kHz. Figure 14
shows the 2-wire interface timing diagram. The master
generates SCL and initiates data transfer on the bus.
The master device writes data to the MAX9880A by
transmitting the proper slave address followed by the
register address and then the data word. Each transmit
sequence is framed by a START (S) or repeated
START (Sr) condition and a STOP (P) condition. Each
word transmitted to the MAX9880A is 8 bits long and is
followed by an acknowledge clock pulse. A master
reading data from the MAX9880A transmits the proper
slave address followed by a series of nine SCL pulses.
The MAX9880A transmits data on SDA in sync with the
master-generated SCL pulses. The master acknowl-
edges receipt of each byte of data. Each read
