23
RP/RF/RS5C62
Interrupt cycle selection register
CTFG bit
(See “2.5 Interrupt Cycle Selection Register”)
(See “2.2 Control Register 2”)

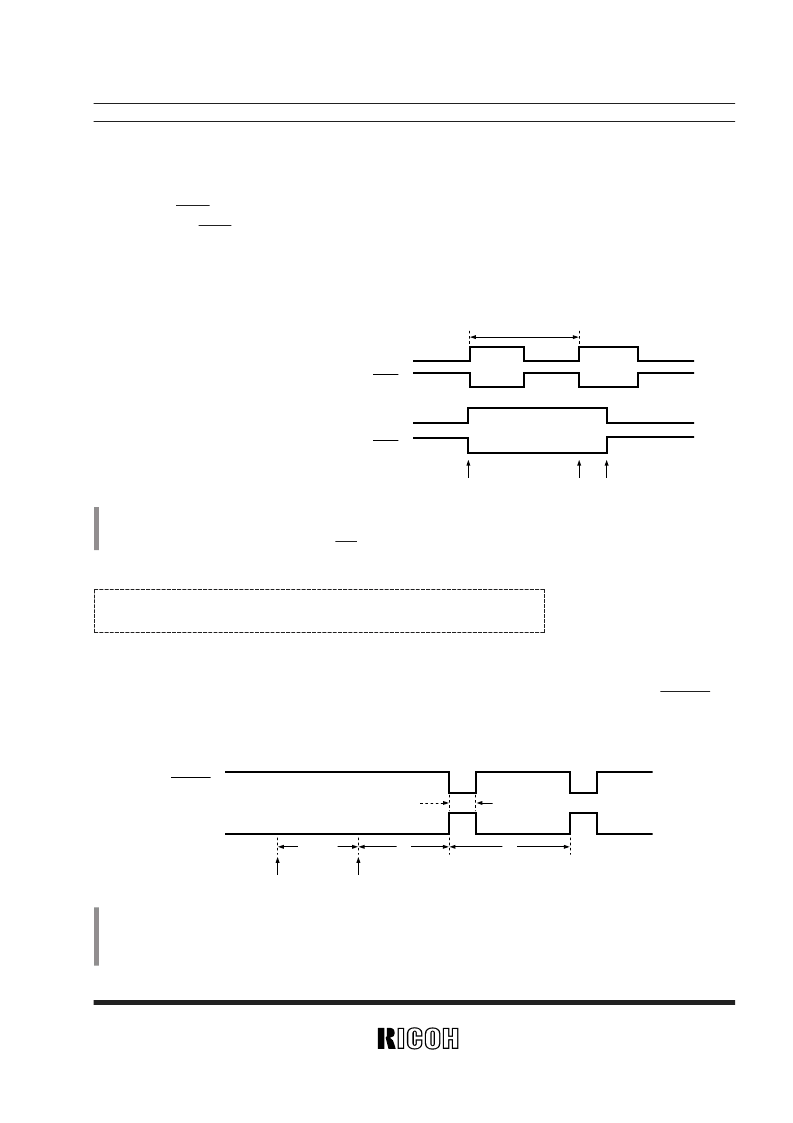

5.2 Cyclic Interrupt
A desired interrupt cycle can be preset in the bits in the interrupt cycle selection register. With the preset inter-
rupt cycle, the INTR pin is driven low (turned on) to output an request for a cyclic interrupt. A cyclic interrupt can
be output from the INTR pin in the pulse mode and the level mode. In the level mode in particular, a cyclic interrupt
can be disabled by setting the CTFG bit to “0” in the control register 2.
Available interrupt cycles: 6 types (0.488ms, 0.977ms, 7.813ms, 62.5ms, 1s, and 60s)
Available output modes: 2 types (pulse mode and level mode)
CTFG
Preset interrupt cycle
INTR
CTFG
INTR
Interrupt
Setting the CTFG bit to “0”
(Interrupt)
*
1) A preset interrupt cycle can be canceled by setting the bits to “0” in the interrupt cycle selection register.
*
2) The above figure assumes that a cyclic interrupt occurs in the absence of an alarm interrupt.
*
3) The CTFG bit has an inverse logic from that of the INTR pin output.
*
1) The timer is stopped upon driving low the CE pin input, but restarted upon driving high the CE pin input.
*
2) Timer output is disabled upon resetting the TM
3
bit to “0” when the stop of oscillation is detected.
*
3) The T3 to T1 bits are described in “2. 9 Timer Clock Selection Register”.
*
4) Timer output is turned off upon setting the TMR bit to “1” in the control register 1 during timer output.
Cyclic Interrupt
6. Timer
Upon lapse of time preset in the timer clock selection register, cyclic pulses are output from the TMOUT pin.
The timer counter can be reset conditional on restart by setting the TMR bit to “1” in the control register 1. (It can
act as a watchdog timer.)
TMOUT
TMFG
Setting the TMR bit to “1”
Setting the TMR bit to “1”
0.244ms
MAX.T
1
T
2
T
3
Pulse mode
(The CT
3
bit is set to “0”.)
(The CTFG bit is not intended for write
operation.)
Level mode
(The CT
3
bit is set to “1”.)
(The CTFG bit is intended for setting to
“0” only.)
