42
5360A–BDC–06/05
TS83102G0BMGS
9.6.3
LVDS Logic Compatibility

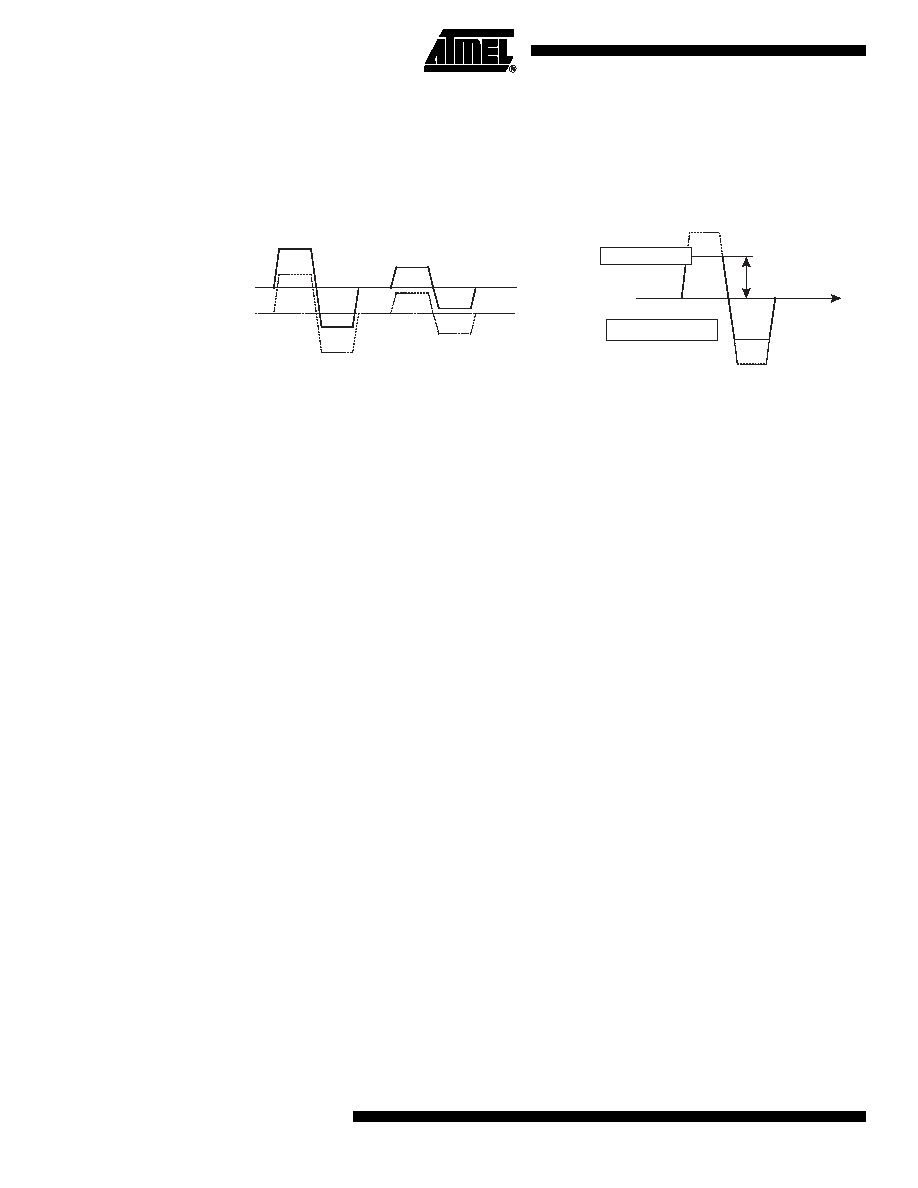

Figure 9-11. LVDS Format (Refer to the IEEE Standards 1596.3 - 1994): 1125 mV < Common
Mode <1275 mV and 250 mV < Output Swing < 400 mV
9.7
Main Functions of the ADC
9.7.1
Out-of-range Bit (OR/ORB)
The out-of-range bit reaches a logical high state when the input exceeds the positive full-scale or
falls below the negative full-scale. When the analog input exceeds the positive full-scale, the dig-
ital outputs remain at a logical high state with OR/ORB at a logical one. When the analog input
falls below the negative full-scale, the digital outputs remain at a logical low state, with OR/ORB
at a logical one again.
9.7.2
Bit Error Rate (BER)
The TS83102G0BMGS’s internal regeneration latches indecisions (for inputs very close to the
latches’ threshold). This may produce errors in the logic encoding circuitry, leading to large
amplitude output errors.
This is because the latches regenerate the internal analog residues into logical states with a
finite voltage gain value (Av) within a given positive amount of time D(t): Av = exp (D (t)/t), with t
being the positive regeneration time constant feedback.
The TS83102G0BMGS has been designed to reduce the probability of such errors occuring to
10-12 (measured for the converter at 2 Gsps). A standard technique for reducing the amplitude
of such errors down to ±1 LSB consists in setting the digital output data to gray code format.
However, the TS83102G0BMGS has been designed to feature a Bit Error Rate of 10-12 with a
binary output format.
9.7.3
Gray or Binary Output Data Format Selection
To reduce the amplitude of such errors when they occur, it is possible to choose between the
binary or gray output data format by storing gray output codes.
Digital data format selection:
BINARY output format if B/GB is floating or GND.
GRAY output format if B/GB is connected to V
EE.
Common Mode
(Each Single-ended Output
Swing Max
Voh Max = 1.575 V
Swing Min
Voh Min
= 1.575 V
Vol Max
= 1.075 V
Vol Min = 0.825 V
CM Max
= 1275 mV
CM Min
= 1125 mV
Output Swing Max = ±300 mVp
Output Swing Min = ±200 mVp
0 V
True-False Output
False-True Output
Swing Max
