4.0 Ring Interface
(Continued)
An abort symbol identifies the occurrence of a failure such
as (1) an illegal symbol sequence, (2) a corrupted symbol or
(3) a node ID for which no node is present. The node that
creates the abort symbol deletes it once the abort symbol
has circulated the ring.
For every tick of the ring clock, every node in the ring re-
ceives one symbol at its upstream port and transmits one
symbol at its downstream port. In the absence of any other
symbol, a null symbol is transmitted.
4.6 Mapping of Type, Frame, Data and EDC
Code on the Ring
On the ring path, a 42-bit symbol is transferred on every tick
of the 50 MHz clock. The 42-bit symbol is divided into 7 sub-
symbols, 6 bits wide. Each sub-symbol is transferred se-
quentially at a rate of 1 sub-symbol every 2.9 ns. In all, 42
bits are transferred every 20 ns. Refer to Figure 4.2.
The type field, frame bit and the 3 MSB of the data are
mapped to sub-symbol t. Data
[
28 to 0
]
are mapped onto
sub-symbols u to y. The EDC field, CB
[
6:0
]
, is mapped onto
the last two sub-symbols of y and z. See Figure 4.4.
Later in this data sheet reference is made only to the fields
that are muItiplexed onto the SS
[
5:0
]
field as they appear
on UpSS and DnSS.Figure 4.2 and4.3 show when each bit
of any symbol is transmitted or received, and in what posi-
tion of the sub-symbol it appears. For example, F (Frame)
appears on SS
[
3
]
during ‘‘sub-symbol t’’. Data 0 (D0) ap-
pears on SS
[
1
]
during ‘‘y’’, the sixth sub-symbol.
Note:
Figure 4.3 shows that the rising edge of DnCLK is aligned with the
beginning of the next to last sub-symbol of the previous symbol that
gets sent out on DnSS
[
5:0
]
.
TL/F/11928–25

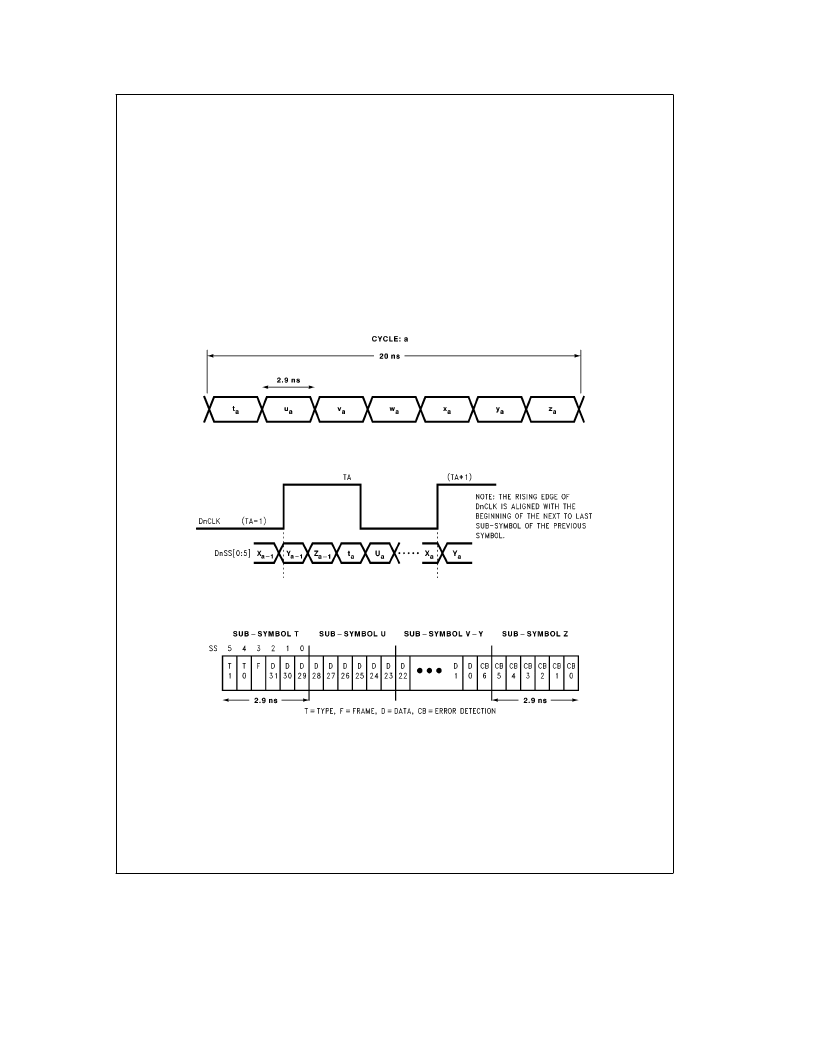

FIGURE 4.2. Seven Sub-Symbols in one Clock Cycle
TL/F/11928–12
FIGURE 4.3. Seven Sub-Symbols are Serially Transmitted Every 2.9 ns
TL/F/11928–13
FIGURE 4.4. Sub-Symbols are Serially Transmitted onto 6 Differential Pairs
19
