SN54ABT8373, SN74ABT8373
SCAN TEST DEVICES WITH OCTAL D-TYPE LATCHES
SCBS487 – JULY 1994
3–13
POST OFFICE BOX 655303
DALLAS, TEXAS 75265
simultaneous PSA and PRPG (PSA/PRPG)
Data appearing at the device input pins is compressed into an 8-bit parallel signature in the shift-register
elements of the input BSCs on each rising edge of TCK. This data is then updated in the shadow latches of the
input BSCs and applied to the inputs of the normal on-chip logic. At the same time, an 8-bit pseudo-random
pattern is generated in the shift-register elements of the output BSCs on each rising edge of TCK, updated in
the shadow latches, and applied to the device output pins on each falling edge of TCK. Figure 6 illustrates the
8-bit linear-feedback shift-register algorithms through which the signature and patterns are generated. An initial
seed value should be scanned into the BSR before performing this operation. A seed value of all zeroes does
not produce additional patterns.
=
=
M
8D
8Q
7D
6D
5D
4D
3D
2D
1D
7Q
6Q
5Q
4Q
3Q
2Q
1Q

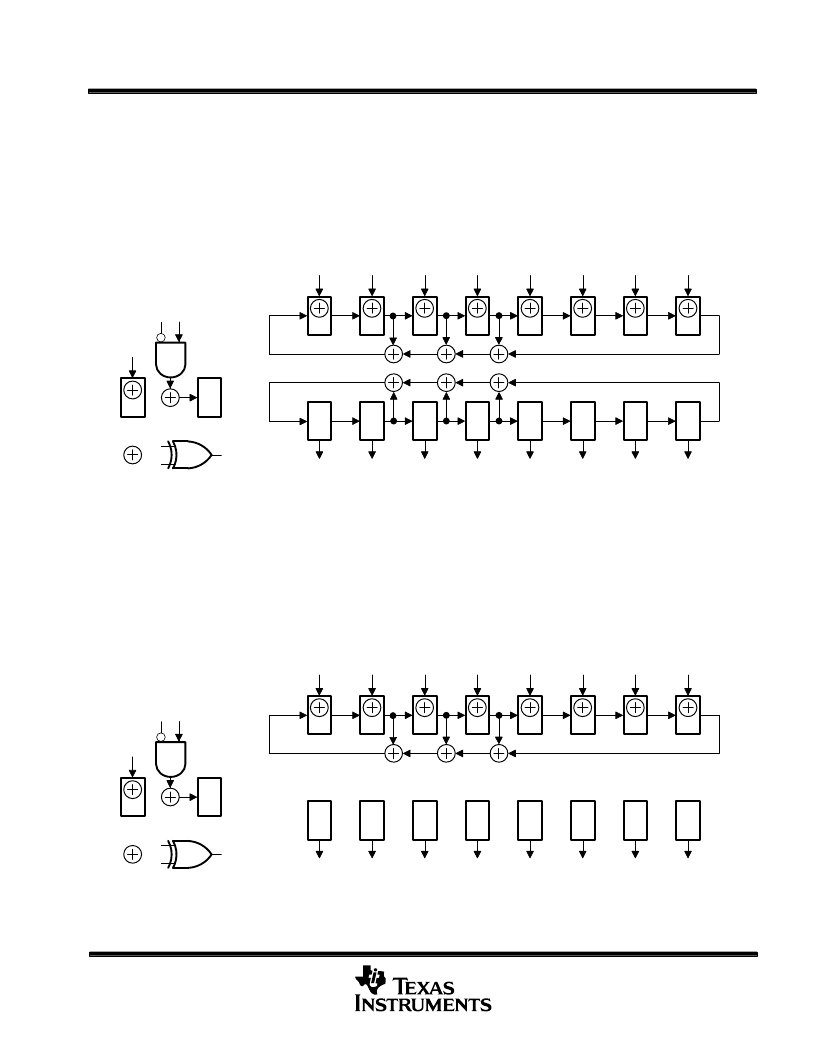

Figure 6. 8-Bit PSA/PRPG Configuration
simultaneous PSA and binary count up (PSA/COUNT)
Data appearing at the device input pins is compressed into an 8-bit parallel signature in the shift-register
elements of the input BSCs on each rising edge of TCK. This data is then updated in the shadow latches of the
input BSCs and applied to the inputs of the normal on-chip logic. At the same time, an 8-bit binary count-up
pattern is generated in the shift-register elements of the output BSCs on each rising edge of TCK, updated in
the shadow latches, and applied to the device output pins on each falling edge of TCK. Figure 7 illustrates the
8-bit linear-feedback shift-register algorithm through which the signature is generated. An initial seed value
should be scanned into the BSR before performing this operation.
=
=
M
8D
8Q
7D
6D
5D
4D
3D
2D
1D
7Q
6Q
5Q
4Q
3Q
2Q
1Q
MSB
LSB
Figure 7. 8-Bit PSA/COUNT Configuration
