TSE Transmission Switch Element Datasheet
Released
Proprietary and Confidential to PMC-Sierra, Inc., and for its Customers’ Internal Use
Document ID: PMC-1991258, Issue 7
18
4
Application Examples
4.1
Motivating Applications
The PM5372 device is principally used in applications where cross-connecting of STS-1/AU-3
streams is required. Such applications include Add-Drop Multiplexers, STS-1 Cross-Connects,
Optical Cross-Connects and Multi-Service Provisioning Platforms. Multi-Service Provisioning
Platforms may also use an STS-1 cross-connect fabric to decouple the physical layer from the
service layer. These products may integrate the DCS, ADM, switching, routing and broadcast
capabilities. Part of an example architecture is illustrated in Figure 1. In this application, the
cross-connect fabric consists of the TSE devices. The TSE devices support a Time-Space-Time
switch architecture. Note that the following example has two complete TSE fabrics to support
“1+1” fabric redundancy. The TSEs labeled
Fab A
compose the primary or working fabric. The
TSEs labeled
Fab B
compose the secondary or protect fabric.

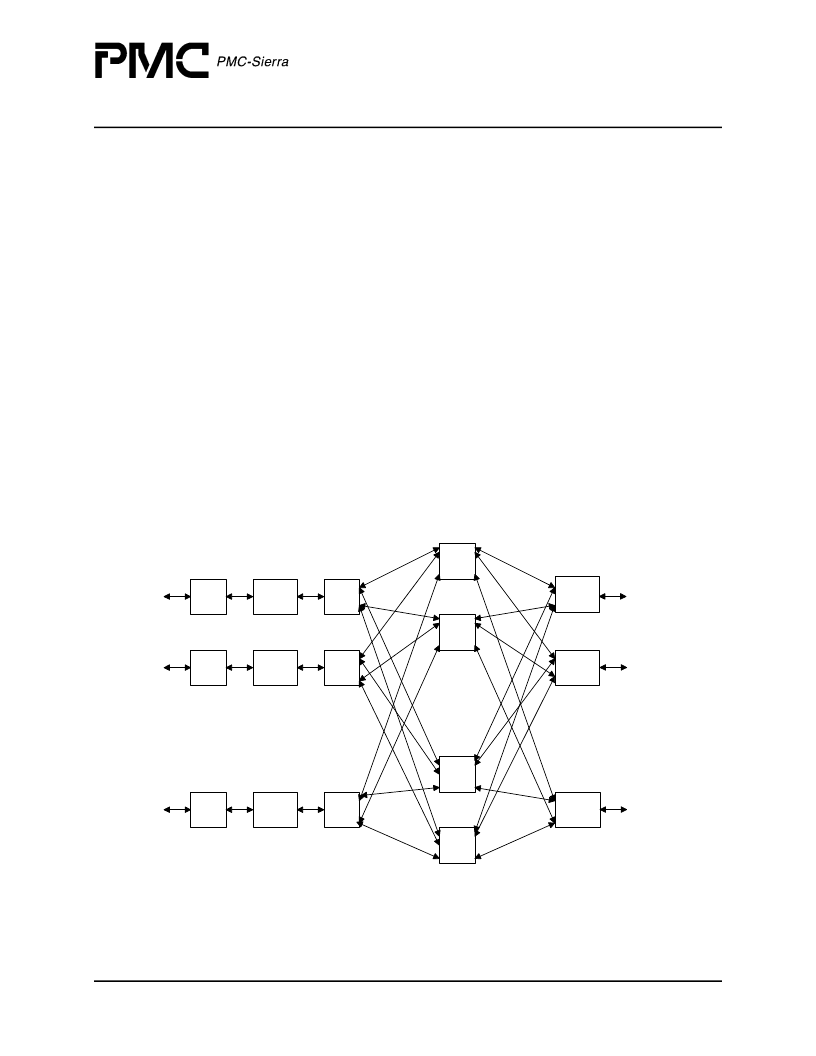

Figure 1 Representative TSE Application
Optics
SPECTRA-
2488
TBS(0)
Fab A
TSE(0)
Fab A
TSE(3)
Fab B
TSE(0)
Fab B
TSE(3)
Optics
SPECTRA-
2488
TBS(1)
Optics
SPECTRA-
2488
TBS
(31)
S/UNI-
Mach48
S/UNI-
Mach48
S/UNI-
Mach48
SONET Ring / PHY Layer
Dual TSE Fabrics
Multi-Service Layer
.
.
.
.
.
.
